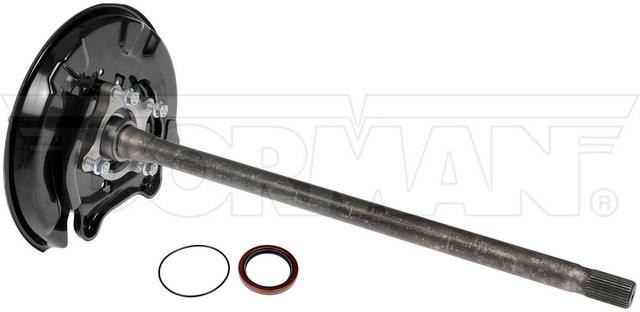

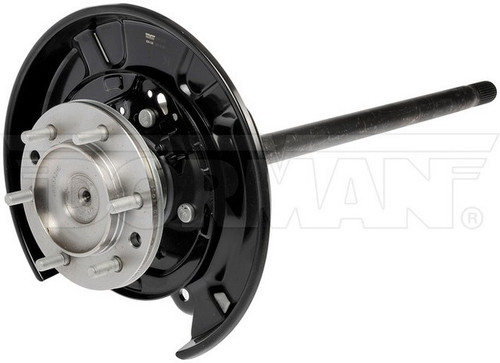

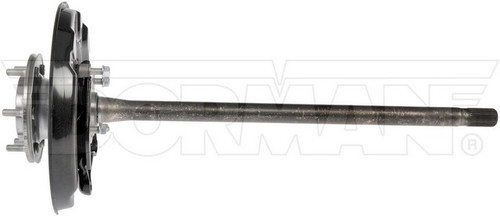

Dorman 926-138 rear right drive axle shaft for the 2010-2024 Toyota 4Runner and other vehicles carries drive torque to the rear right wheel. This loaded drive axle shaft assembly arrives with the bearing already pressed on, so no shop press is needed.
- Dorman OE FIX loaded axle with a new shaft, wheel bearing, hub and backing plate pre-assembled
- Rust-resistant coating
- Undergoes try-on, corrosion and material testing for a long service life
- Semi-float design with 30 splines inboard and 30 outboard
Quick facts
- Part: Dorman 926-138 drive axle shaft
- Also called: drive axle shaft assembly
- Fits: 2010-2024 Toyota 4Runner and other vehicles
- Position: Rear right
- Material: Carbon steel
- Condition: New
A humming noise from the rear right wheel, vibration or a leaking axle seal can mean the bearing or shaft is worn. Before you replace this assembly, rule out a tire or brake problem that makes a similar noise. Axles are normally replaced in pairs, but this listing is one axle for the rear right; the rear left is ordered separately, and the 2010-2024 Toyota 4Runner takes one on that side.
Fits
It fits the 2010-2024 Toyota 4Runner, the 2010-2023 Lexus GX460 and the 2010-2014 Toyota FJ Cruiser.
Specifications
Fit and size
- Position: Rear right
- Quantity per vehicle: 1
- Shaft diameter: 33.6 mm
- Length: 793 mm (compressed length 793 mm)
- Wheel bolt pattern: 6 lug x 139.7 mm
- Wheel stud thread: M12, 1.5 mm pitch
Build and materials
- Type: pre-pressed loaded axle
- Material: Carbon steel
- Rust-resistant coating: yes
- ABS tone ring: not included
- Condition: New
- Country of origin: India
In the box

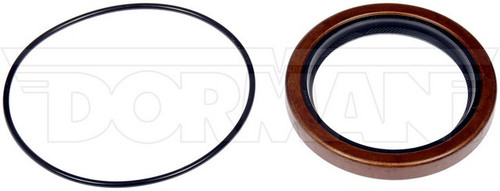

One axle assembly with the hub bearing, backing plate, brake dust shield and wheel studs, plus one axle housing seal and one axle housing O-ring. The ABS tone ring and brake hardware are not included.
Installation notes
- Ready to install right out of the box.
- Avoids the unpredictable work of replacing a bearing without damaging other components.
Interchange: 4231160242 · 4245060050 · 4650360131
This part cross-references / interchanges with the following part numbers:
4231160242, 4245060050, 4650360131
Frequently Asked Questions
Is Dorman 926-138 the right rear right drive axle shaft for a 2010-2014 Toyota FJ Cruiser?
Yes. Dorman 926-138 is a rear right drive axle shaft that fits the 2010-2014 Toyota FJ Cruiser. It also fits the 2010-2023 Lexus GX460.
Does this drive axle shaft come with the wheel bearing and wheel studs?
Yes. The assembly includes the hub bearing, backing plate, brake dust shield and wheel studs, plus an axle housing seal and O-ring. The ABS tone ring and brake hardware are not included.
What wheel bolt pattern and stud thread does the Dorman 926-138 axle have?
Dorman 926-138 has a 6 lug x 139.7 mm wheel bolt pattern. Its wheel studs have an M12 thread with a 1.5 mm pitch.
How do I know if the bearing on my rear drive axle shaft is worn?
A humming or growling noise from that wheel, or a visibly leaking axle seal, can mean wear. A shop can confirm the cause.
Do I need a shop press to install this loaded axle?
No. The bearing, hub and backing plate come pre-assembled on the new shaft, so the press step is eliminated and the assembly is ready to install out of the box.
