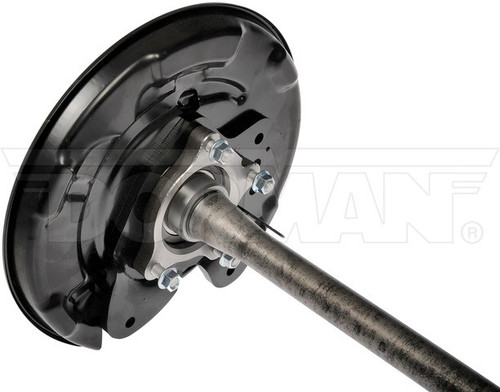

Dorman 926-144 rear right drive axle shaft for the 2007-2016 Toyota Tundra carries drive torque from the differential to the wheel. Sold as a drive axle shaft assembly, it is a pre-pressed Dorman OE FIX loaded axle.
- Includes a new axle shaft, wheel bearing, hub and backing plate
- Avoids the unpredictable work of replacing bearings without damaging other components, which saves time
- Rust resistant coating
- Try-on, corrosion and material testing for long service life
Quick facts
- Part: Dorman 926-144 drive axle shaft
- Also called: drive axle shaft assembly
- Fits: 2007-2016 Toyota Tundra
- Position: Rear right
- Material: Carbon steel
- Condition: New
A humming or growling noise that changes with speed, or a leak at the axle seal, can mean the rear shaft or wheel bearing is worn. Those signs alone do not prove this part is the problem; a worn tire can make a similar hum.
Fits
It fits the 2007-2016 Toyota Tundra, which takes one on each side of the rear axle. This listing is one shaft for the rear right; the rear left is a separate part, and both sides are normally replaced together.
Specifications
Fit and size
- Position: rear right
- Quantity per vehicle: 1 per side
- Shaft diameter: 49 mm
- Length: 910.5 mm
- Wheel bolt pattern: 5 x 150 mm
- Wheel stud thread: M14 x 1.5 mm
- Splines: 32 inboard, 32 outboard
- Differential case design: semifloating
Build and materials
- Material: carbon steel
- Rust resistant coating: yes
- ABS tone ring: included
- Condition: new
- Country of origin: India
In the box
One axle shaft and bearing assembly, one axle seal and one axle O-ring. The assembly includes the wheel studs, hub bearing, brake backing plate, brake dust shield and ABS tone ring. Brake hardware is not included.
Installation notes
- Arrives pre-assembled and ready to install right out of the box.
- No shop press is needed to complete the bearing repair.
Interchange: 423110C020 · 465030C012
Frequently Asked Questions
Is the Dorman 926-144 rear right drive axle shaft right for the 2007-2016 Toyota Tundra?
Yes. Dorman 926-144 is the rear right drive axle shaft for the 2007-2016 Toyota Tundra, and the truck takes one on that side of the rear axle.
Does this pre-pressed axle come with the wheel bearing and ABS tone ring?
Yes. Dorman 926-144 includes the hub bearing, wheel studs, backing plate, dust shield and ABS tone ring, plus an axle seal and O-ring. Brake hardware is not included.
What are the shaft diameter and spline count on this rear axle?
The shaft is 49 mm in diameter with 32 splines at each end. The wheel studs are M14 x 1.5 mm on a 5 x 150 mm bolt pattern.
Do I need a shop press to install the wheel bearing on this loaded axle?
No. The bearing, hub and backing plate come pre-assembled with the shaft, so the bearing repair does not call for a shop press.
Is 423110C020 an interchange number for this Dorman axle shaft?
Yes. 423110C020 is listed as an interchange number for Dorman 926-144, a rear right drive axle shaft.
