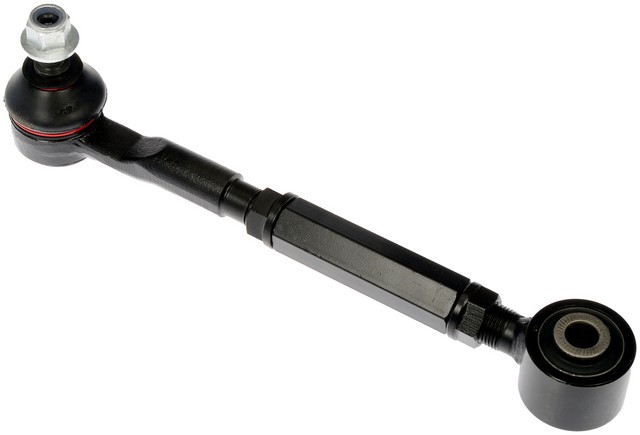

Keep the rear wheel located and moving on its intended path with this Dorman control arm, the Dorman OE Solutions lateral arm and ball joint assembly, part number 524-011. It is a direct-fit replacement for the rear lower forward arm on the 2006-2010 Toyota RAV4. Engine-specific details are in the "Vehicles it fits" section.
Dorman lists this part as a lateral arm and ball joint assembly, and it is also cataloged as a control arm with ball joint. In the rear suspension, the arm helps locate the wheel and control its movement as the suspension travels. The ball joint is part of the assembly and provides a pivot point. Because this Dorman suspension control arm and ball joint assembly supplies the arm and the ball joint together, both are replaced in one job.
- Direct replacement: designed to fit and perform like the factory arm on the listed applications.
- Reliable fit: precision-engineered to follow the design and dimensions of the original components.
- Durable construction: built to strict standards from sturdy, safe materials.
- Rigorously tested: checked through thorough quality control measures.
Signs a 2006-2010 Toyota RAV4 control arm may need replacing include clunking or knocking from the rear over bumps, uneven tire wear, a wandering feel, or play in the ball joint. If a worn arm or ball joint is the cause, installing 524-011 replaces both. Diagnose the cause before replacing parts.
Interchange: 102-7711
1027711 · TC6869 · TC8161 · CA2242 · 1CB86416 · 6CB86395 · RK100170 · RK621848 · GS861233 · CMS861228 · CMS861233 · 2607975 · 2608202 · 1525064 · X50LA0198 · 487100R010 · 4871042020
This part cross-references / interchanges with the following part numbers:
102-7711, TC6869, TC8161, CA2242, 1CB86416, 6CB86395, RK100170, RK621848, GS861233, CMS861228, CMS861233, 2607975, 2608202, 1525064, X50LA0198, 487100R010, 4871042020
Frequently Asked Questions
Which position does this 2006-2010 Toyota RAV4 control arm replace?
It is cataloged for the rear lower forward position on the 2006-2010 Toyota RAV4. See the "Vehicles it fits" section for engine-specific details.
What does a lateral arm with ball joint do?
It helps locate the rear wheel and control its movement as the suspension travels. The ball joint in the assembly provides a pivot point.
What are the signs this arm may need replacing?
Signs include clunking or knocking from the rear over bumps, uneven tire wear, a wandering feel, or play in the ball joint. Diagnose the cause before replacing parts.
Is the ball joint included?
Yes. Dorman supplies 524-011 as a lateral arm and ball joint assembly, so the ball joint comes as part of the arm.
What should I know about installation?
Follow the vehicle service information for the correct fasteners, torque values and whether the original fasteners may be reused. Have the wheel alignment checked after installation.
