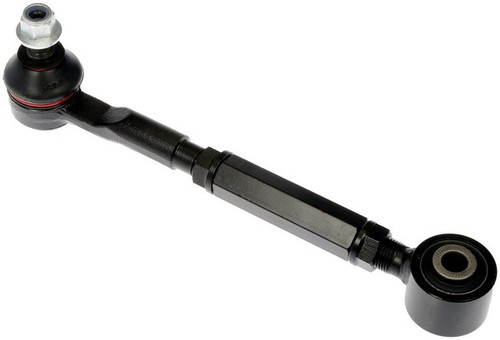

Help keep the rear wheel located and your suspension geometry in check with the Dorman - OE Solutions Lateral Link / Lateral Arm and Ball Joint Assembly, part number 524-415, a rear suspension assembly that combines the lateral arm and its ball joint in one piece. It fits many Jaguar models, among them the 2004-2009 Jaguar XJR, 2014-2024 Jaguar F-Type and 2010-2015 Jaguar XF. See the "Vehicles it fits" section for the full list and engine details.
The catalog lists this part as a lateral link and ball joint assembly, and Dorman describes it as a lateral arm and ball joint assembly. Both names refer to the same part.
- Direct replacement: designed to fit and perform like the original equipment on the listed applications.
- Reliable fit: precision-engineered to match the design and dimensions of the original components.
- Durable construction: built to strict standards using sturdy, safe materials.
- Rigorously tested: thorough quality-control checks are intended to support longevity.
A lateral link helps locate the wheel side to side, and the ball joint lets that connection pivot as the suspension moves. Signs this assembly may need replacing include clunking from the rear over bumps, a loose or wandering feel, and uneven rear tire wear. Other suspension parts can cause the same signs, so diagnose the cause first. If a worn lateral link or ball joint is the cause, this assembly replaces both at once. Have the rear alignment checked after installation.
Interchange: CA2336 · C2C13835 · C2C1802 · C2C18419 · C2C24305 · C2C36985 · C2D49814 · C2D51042 · C2D51044 · C2D5993 · K750896 · X21SL0645 · JTC1336
This part cross-references / interchanges with the following part numbers:
CA2336, C2C13835, C2C1802, C2C18419, C2C24305, C2C36985, C2D49814, C2D51042, C2D51044, C2D5993, K750896, X21SL0645, JTC1336
Frequently Asked Questions
What does the Dorman 524-415 Lateral Link / Lateral Arm and Ball Joint Assembly do?
It helps locate the rear wheel side to side and keep the suspension alignment in check. The ball joint in the assembly lets the connection pivot as the suspension moves.
Will this fit my 2004-2009 Jaguar XJR?
Yes, it is listed for the 2004-2009 Jaguar XJR, as well as the 2014-2024 Jaguar F-Type and 2010-2015 Jaguar XF. Check the "Vehicles it fits" section for the full list of models.
Is a lateral link the same as a lateral arm?
For this part, yes. It is cataloged as a lateral link and ball joint assembly, and Dorman describes it as a lateral arm and ball joint assembly. Both names refer to part 524-415.
What are signs the lateral link or ball joint is worn?
Common signs include clunking from the rear over bumps, a loose or wandering feel, and uneven rear tire wear. Diagnose the cause first, because other suspension parts can produce similar symptoms.
Do I need an alignment after installing it?
Checking the rear alignment after installation is recommended. Follow the vehicle service information for the correct fasteners, torque values, and whether the original fasteners may be reused.
