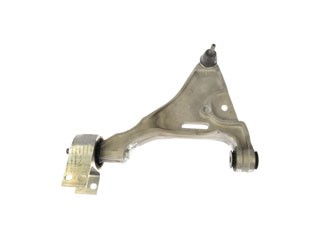

Dorman 520-394 front right lower control arm with ball joint for the 2006-2011 Buick Lucerne and other vehicles connects the steering knuckle to the frame. This Dorman control arm from the OE Solutions line was evaluated for a smooth ride, directional stability and predictable dynamics.
- Standard replacement grade
- Casting/Forged aluminum arm with rubber bushings
- Threaded ball joint stud
- Additional coatings for rust and corrosion resistance
Quick facts
- Part: Dorman 520-394 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2006-2011 Buick Lucerne and other vehicles
- Position: Front right lower
- Material: Aluminum arm, rubber bushings
- Condition: New
A clunk over bumps, vague or wandering steering or uneven tire wear can mean this front lower arm or its ball joint is worn, though a worn sway bar link or wheel bearing can be behind the same signs, so find the cause before you replace anything.
Fits
This Dorman lower control arm fits the 2006-2011 Cadillac DTS and the 2006-2011 Buick Lucerne. A 2006-2011 Buick Lucerne takes one arm at the front right, and this listing is that one arm; the front left lower arm on the same axle is a separate part, and the pair is normally replaced together.
Specifications
Fit and size
- Position: Front right lower
- Quantity per listing: 1
- Mounting hole diameter: 12.3 mm
- Mounting hole quantity: 1
- Ball joint thread diameter: 14 mm
- Maximum width: 288.5 mm
- Maximum length: 237 mm
Build and materials
- Control arm type: Casting/Forged
- Control arm material: Aluminum
- Bushing material: Rubber
- Ball joint stud: Threaded
- Grade: Standard replacement
- Condition: New
- Country of origin: China
In the box
One control arm with ball joint and mounting hardware. No grease fitting is included.
Installation notes
- Ball joint and bushings are pre-installed, saving time and labor.
- The ball joint is pre-greased.
Interchange: 810-232829B · 622.62037 · 623.62037
TC6339 · CA16259 · 15939600 · 25750676 · RK80355 · FA4873 · GK80355 · CMK80355 · 2605879 · 5CB50009 · SK520394 · JTC1826
This part cross-references / interchanges with the following part numbers:
810-232829B, 622.62037, 623.62037, TC6339, CA16259, 15939600, 25750676, RK80355, FA4873, GK80355, CMK80355, 2605879, 5CB50009, SK520394, JTC1826
