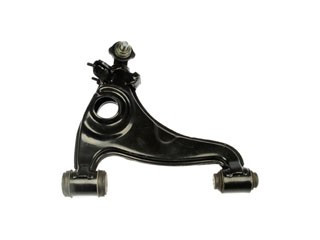

Dorman 520-584 front right lower control arm with ball joint for the 1984-1993 Mercedes-Benz 190E and other vehicles links the front right wheel to the chassis. This Dorman OE Solutions control arm and ball joint assembly directly replaces the original on specific applications.
- Ball joint and bushings pre-installed, saving time and labor
- Steel control arm with rubber bushings
- Additional coatings for rust and corrosion resistance
- Evaluated for directional stability and predictable dynamics
Quick facts
- Part: Dorman 520-584 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 1984-1993 Mercedes-Benz 190E and other vehicles
- Position: Front right lower
- Material: Steel control arm, rubber bushings
- Condition: New
A clunk over bumps, uneven front tire wear or loose steering can mean a worn control arm or ball joint. Before you replace this arm, rule out other worn front suspension and steering parts, because they can produce similar symptoms.
Fits
It fits the 1984-1993 Mercedes-Benz 190E and the 1984-1989 Mercedes-Benz 190D. The 1984-1993 Mercedes-Benz 190E takes one on the front right. This listing is one arm; the front left on that axle is a separate part and is normally done at the same time.
Specifications
Fit and size
- Position: front right lower
- Quantity per application: 1
- Mounting hole diameter: 12.3 mm
- Ball joint thread diameter: 14 mm
- Maximum width: 288.5 mm
- Maximum length: 237 mm
Build and materials
- Grade: standard replacement
- Construction: casting/forged
- Control arm material: steel
- Bushing material: rubber
- Ball joint stud type: pinch
- Adjustable: no
- Condition: new
- Country of origin: Taiwan
In the box
One control arm with ball joint and mounting hardware.
Installation notes
- The ball joint comes pre-greased.
- No grease fitting is included with the ball joint.
Interchange: 102-6556
TC1109 · CA14039 · RK622293 · 1243303907 · 2013303907 · GS101045 · CMS101045 · 2606313 · JTC223
This part cross-references / interchanges with the following part numbers:
102-6556, TC1109, CA14039, RK622293, 1243303907, 2013303907, GS101045, CMS101045, 2606313, JTC223
Frequently Asked Questions
Is this Dorman control arm the right one for the 1984-1989 Mercedes-Benz 190D?
Yes. Dorman 520-584 is a front right lower control arm with ball joint for the 1984-1989 Mercedes-Benz 190D and the 1984-1993 Mercedes-Benz 190E.
Do the Dorman control arm bushings come installed on this arm?
Yes. Dorman 520-584 arrives with rubber bushings and the ball joint already installed, and mounting hardware is included.
Is this Dorman lower control arm for the left or right side?
This lower control arm is for the front right. The front left is a separate part.
Is the Dorman OE Solutions suspension control arm made of steel?
Yes. This control arm is steel with rubber bushings, and additional coatings give it rust and corrosion resistance.
What size is the ball joint stud on Dorman 520-584?
The ball joint has a 14 mm thread diameter and a pinch-type stud.
