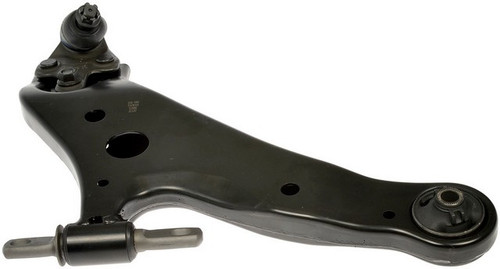

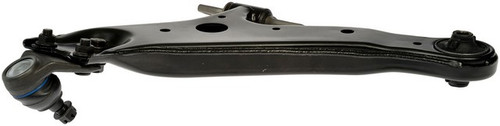

Dorman 524-088 front right lower control arm with ball joint for the 2008-2019 Toyota Highlander and other vehicles connects the front right wheel to the vehicle and lets it move with the suspension. This Dorman suspension control arm and ball joint assembly is built as a complete repair for that position.
- Part of the Dorman OE Solutions line
- Pre-installed ball joint and bushings save installation time and labor
- Steel control arm with rubber bushings in a boxed construction
- Additional coatings add rust and corrosion resistance
- Tested to support a smooth, stable and safe ride
Quick facts
- Part: Dorman 524-088 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2008-2019 Toyota Highlander and other vehicles
- Position: Front right lower
- Material: Steel (control arm), rubber (bushings)
- Condition: New
A clunk over bumps, uneven front tire wear or loose-feeling steering can come from a worn control arm bushing or ball joint, but other suspension parts cause the same signs. Before replacing anything, look at the front right tire for uneven wear and leave the bushing and ball joint inspection to a shop, since it needs the vehicle raised. This listing is one arm. The front left is a separate part, and the two sides are normally replaced together.
Fits
It is a direct replacement for the original equipment on the 2008-2019 Toyota Highlander, the 2010-2022 Lexus RX350 and the 2018-2022 Lexus RX350L, and the front right position on each takes one arm. Driving something else from Toyota or Lexus? Look up your year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: front right lower
- Quantity per vehicle: 1
- Mounting hole diameter: 12.3 mm
- Bushing inside diameter: 14.3 mm
- Bushing length: 136.3 mm
- Distance between bushings: 317 mm
- Control arm maximum width: 288.5 mm
- Control arm maximum length: 237 mm
- Ball joint stud length: 19.3 mm
- Ball joint thread diameter: 14 mm
Build and materials
- Control arm construction: boxed
- Control arm material: steel
- Bushing material: rubber
- Ball joint: installed, bolt-in mounting, threaded stud
- Grade: standard replacement
- Condition: new
- Country of origin: Taiwan
In the box
One control arm with ball joint and bushings, plus mounting hardware.
Installation notes
- The ball joint comes pre-greased and has no grease fitting.
- The ball joint is a bolt-in type with a threaded stud.
Interchange: 102-7772 · 810-690362B · 622.44817
TC7567 · CA14620 · 5CB86243 · RK622944 · GS861029 · CMS861029 · 2608181 · 2608181M · X622944 · SK524088 · X50CA0028 · X50CJ4055 · 480680E050 · 480680E060 · 480680T010 · 480680T011 · 4806848040 · 4806848041 · 4806848070
This part cross-references / interchanges with the following part numbers:
102-7772, 810-690362B, 622.44817, TC7567, CA14620, 5CB86243, RK622944, GS861029, CMS861029, 2608181, 2608181M, X622944, SK524088, X50CA0028, X50CJ4055, 480680E050, 480680E060, 480680T010, 480680T011, 4806848040, 4806848041, 4806848070
Frequently Asked Questions
Will this Toyota Highlander control arm fit a 2008-2019 model on the front right?
Yes. Dorman 524-088 is the front right lower control arm for the 2008-2019 Toyota Highlander, and that side takes one. For other years and models, check the "Vehicles it fits" section.
Is a Dorman control arm bolt included with this arm?
Yes, mounting hardware is included with Dorman 524-088, and the ball joint and bushings come installed on the arm.
What is this Dorman lower control arm made of?
The control arm is steel in a boxed construction, and the bushings are rubber. The ball joint stud has a 14 mm thread diameter.
Can a clunk over bumps on the front right come from a worn bushing or ball joint?
It can, and torn or cracked bushing rubber or uneven front tire wear are other signs, though other suspension parts can cause a clunk too. Have it inspected promptly, since the arm is part of the steering and ride.
Does the ball joint on this Dorman control arm need a grease fitting?
No. The ball joint comes pre-greased, and Dorman 524-088 has no grease fitting.
