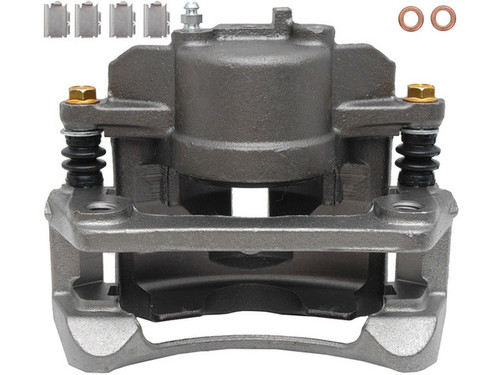

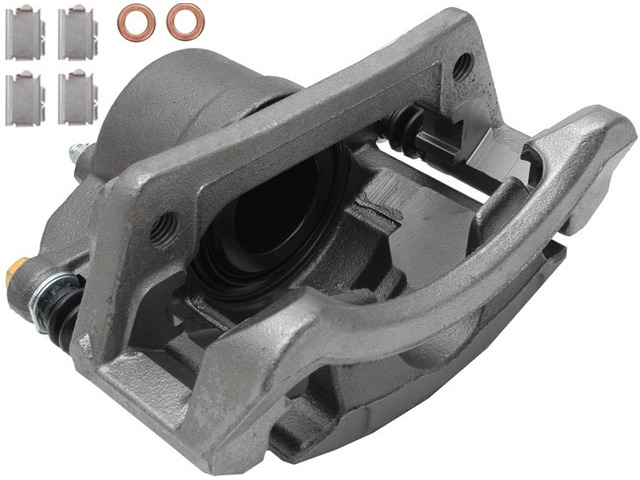

Raybestos Brakes FRC11219 front left brake caliper for the 2001-2005 Dodge Grand Caravan and other vehicles presses the pads against the rotor to slow the wheel. This remanufactured disc brake caliper is a semi-loaded caliper and bracket assembly with materials matching OE specifications.
- Raybestos R-Line non-plated caliper remanufactured with all new rubber and sealing components
- Castings, guide pins and brackets are inspected before reuse
- Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new parts for leak-free operation
- Silicone boots for heavy-duty applications, where applicable
- EPDM70 rubber components for heat resistance and durability
- Each caliper is 100% pressure tested
Quick facts
- Part: Raybestos Brakes FRC11219 brake caliper
- Also called: disc brake caliper
- Fits: 2001-2005 Dodge Grand Caravan and other vehicles
- Position: Front left
- Material: Cast iron
- Condition: Remanufactured
A car that pulls to one side under braking, a wheel that drags, or brake fluid around the caliper can all be signs of a failing caliper. Before you replace it, rule out worn pads, a damaged brake hose and a seized guide pin, since a different part could be behind the same symptom.
Fits
This front left brake caliper is a direct-fit replacement for the 2001-2005 Dodge Grand Caravan, the 2003-2005 Chrysler Town & Country and the 2001-2005 Dodge Caravan. For any other model or engine, open the "Vehicles it fits" section and check your exact one.
Specifications
Fit and size
- Position: Front left
- Quantity for the front left: 1
- Caliper piston diameter: 3 in (76.2 mm)
- Bleeder screw thread: 3/8-24
Build and materials
- Type: Semi-loaded caliper and bracket assembly
- Casting material: Cast iron
- Finish: Non-plated
- Condition: Remanufactured
- Country of origin: Mexico
In the box
This listing holds one front left caliper and bracket assembly, and the front left takes one. The front right is its own part, ordered separately, and both sides are normally replaced together.
Interchange: 99-17673A · 99-17720A · 18-B4788 · 18-P4788 · 141.63023 · 142.63023 · 99-17673B · 14-1180
5139901AA · SC0227 · SC0229 · SC0285
This part cross-references / interchanges with the following part numbers:
99-17673A, 99-17720A, 18-B4788, 18-P4788, 141.63023, 142.63023, 5139901AA, SC0227, SC0229, SC0285, 99-17673B, 14-1180
Frequently Asked Questions
Is this caliper right for the 2001-2005 Dodge Caravan?
Yes. Raybestos Brakes FRC11219 fits the 2001-2005 Dodge Caravan as the front left caliper; the front right side is a separate part.
Is this a front brake caliper for the 2005 Dodge Grand Caravan within the 2001-2005 range?
Yes, for the front left side. Raybestos Brakes FRC11219 fits the 2001-2005 Dodge Grand Caravan; open the "Vehicles it fits" section to check your exact engine.
How big is the piston on the Raybestos R-Line FRC11219 caliper?
The caliper piston is 3 inches (76.2 mm) across, and the bleeder screw thread is 3/8-24.
How do I tell if a front left caliper is sticking or leaking?
Look for brake fluid around the caliper or a wet, stained boot, and notice whether the car pulls to one side or drags when braking. A shop can test the caliper itself.
Are the rubber parts on this remanufactured caliper new?
Yes. All the rubber and sealing components are new, including the seals, boots and bleeder, and the caliper is 100% pressure tested.
