Raybestos Brakes Disc Brake Caliper FRC11385

Raybestos Brakes Disc Brake Caliper FRC11385 - view 2

Raybestos Brakes Disc Brake Caliper FRC11385 - view 3

Raybestos Brakes Disc Brake Caliper FRC11385 - view 4

Raybestos Brakes Disc Brake Caliper FRC11385 - view 5

Raybestos Brakes Disc Brake Caliper P/N:FRC11385

Be the first to review this product

$116.99

MPN: FRC11385

UPC: 829352045015

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Caliper P/N:FRC11385

$116.99

Description

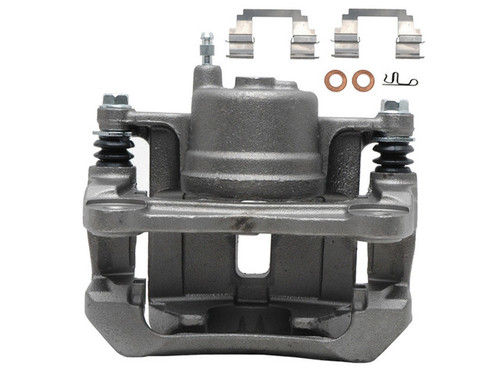

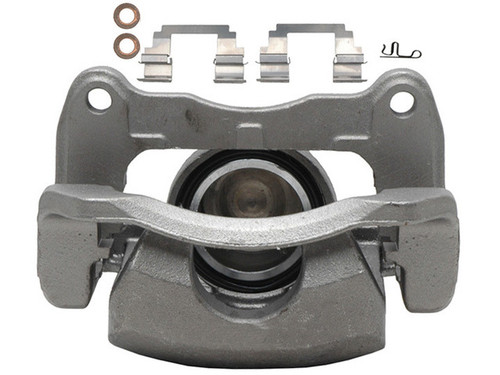

Replace a seized, leaking or worn front-left caliper with the Raybestos R-Line Remanufactured Semi-Loaded Disc Brake Caliper and Bracket Assembly (FRC11385) — a direct-fit 2003-2008 Toyota Corolla caliper that also installs on the 2003-2008 Pontiac Vibe and 2003-2008 Toyota Matrix. This FRONT LEFT floating caliper is remanufactured from an OE core with a cast-iron casting and a 2.248 in (57.1 mm) piston, then rebuilt with all-new rubber and sealing components so it clamps the rotor and applies braking force at that wheel.

Rebuilt for leak-free operation: seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials; castings, guide pins and brackets are inspected before reuse.
EPDM70 rubber components: for heat resistance, performance and durability, with silicone boots on heavy-duty applications where applicable.
100% pressure tested: each caliper is pressure tested and built with materials matching OE specifications.
M7x1 bleeder screw thread and a 12.000 mm bracket mounting hole (1.250 mm thread pitch).

If a seized, leaking or worn front-left caliper is the cause of uneven braking, pulling or drag, this assembly replaces it. Country of origin: Mexico.

Interchange: 15-19272 · 99-01633A · 19-B2698 · 19-P2698 · 141.44222 · 142.44222 · 14-9272
1519272 · 9901633A · 19B2698 · 19P2698 · 14144222 · 14244222 · 149272 · SC1125

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

15-19272, 99-01633A, 19-B2698, 19-P2698, 141.44222, 142.44222, SC1125, 14-9272

Frequently Asked Questions

Does this brake caliper fit a 2006 Toyota Corolla?

Yes. FRC11385 is listed for the 2003-2008 Toyota Corolla with all engines. See the Buyer's Guide tab for the full fitment list.

Is this a front or rear caliper, and which side?

It is cataloged as the FRONT LEFT (driver-side) caliper for the listed applications. It is a floating-type disc brake caliper.

What comes in this semi-loaded assembly?

It ships as a remanufactured caliper and mounting bracket assembly. New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are installed; castings, guide pins and brackets are inspected before reuse.

Is this caliper tested before shipping?

Yes. Each R-Line caliper is 100% pressure tested and built with EPDM70 rubber components and materials matching OE specifications for reliable braking performance.

What is the piston size and bleeder thread on this brake caliper?

The caliper piston measures 2.248 in (57.1 mm) and the bleeder screw thread is M7x1. The bracket mounting hole is 12.000 mm with a 1.250 mm thread pitch.
