Front Left Brake Caliper for 2013-2022 Ford F-250 Super Duty & More - Raybestos FRC12594

Be the first to review this product
$207.99
WARNING:California Proposition 65▾
MPN: FRC12594
UPC: 887213111217
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Raybestos Brakes Disc Brake Caliper P/N:FRC12594
Raybestos Brakes Disc Brake Caliper P/N:FRC12594
$207.99

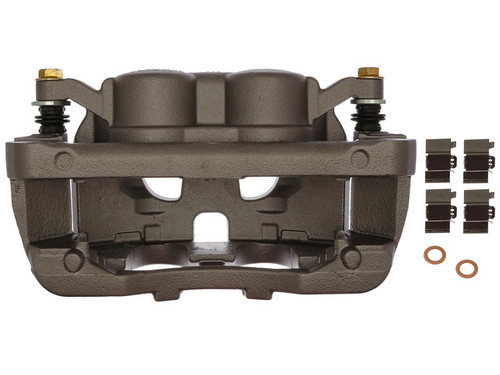

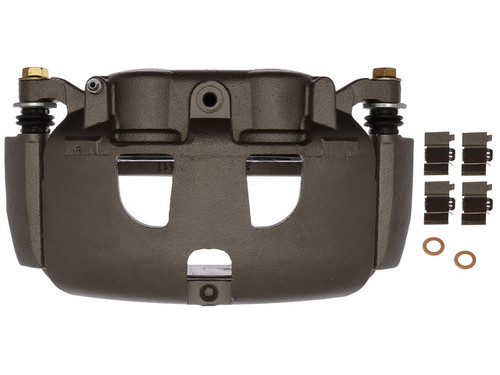

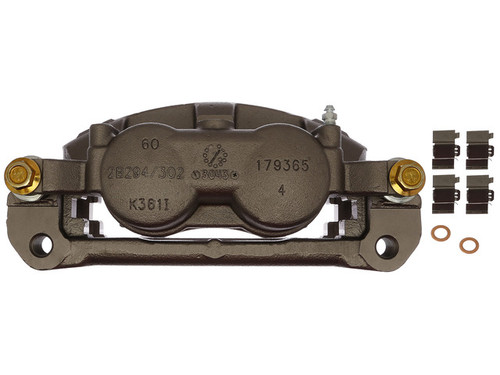

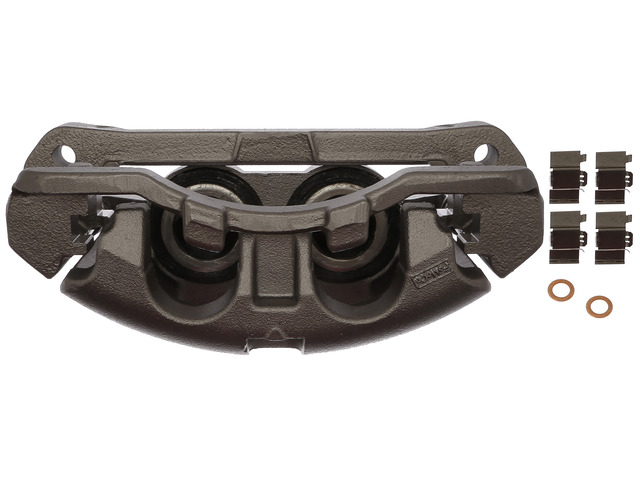

Apply clamping force at the driver's-side front corner with the Raybestos R-Line Semi-Loaded Disc Brake Caliper and Bracket Assembly FRC12594, a remanufactured direct-fit brake caliper for the 2013-2022 Ford F-250 Super Duty, 2013-2022 Ford F-350 Super Duty and 2013-2016 Ford F-450 Super Duty (all engines). This is the front-left (driver's-side) unit — a floating cast-iron caliper with two pistons (2.357 in / 59.868 mm) that press the pads against the rotor, and it ships with the mounting bracket included.

Raybestos rebuilds these from OE castings, guide pins, and brackets that are inspected before reuse, with materials matched to OE specifications.

  • New sealing components: seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are replaced with new parts for leak-free operation.
  • EPDM70 rubber: used for heat resistance, performance, and durability; silicone boots on heavy-duty applications where applicable.
  • 100% pressure tested: each caliper is tested to verify braking performance.
  • Coated finish: both the caliper and bracket carry a coated surface finish. Bleeder screw thread is 3/8-24; bracket mounting holes are M16 x 2.0. Country of origin: Mexico.

Replacing calipers as a matched pair helps keep braking even side to side.

Interchange: 18-B5487 · 99-17990B · 18-P5487 · 141.65102 · 142.65102 · 10-3424S · 14-3424
18B5487 · 9917990B · 18P5487 · 14165102 · 14265102 · 103424S · 143424 · SC3357 · BRCF259 · BRCF403

This part cross-references / interchanges with the following part numbers:

18-B5487, 99-17990B, 18B5487, 18-P5487, 141.65102, 142.65102, SC3357, BRCF259, BRCF403, 10-3424S, 14-3424

Frequently Asked Questions

Is this the right brake caliper for a 2013-2022 Ford F-250 Super Duty?

Yes. FRC12594 is a direct-fit front-left caliper for the 2013-2022 Ford F-250 Super Duty (all engines); see the Buyer's Guide tab for the full list of applications.

Which position is this caliper?

It is the front-left (driver's-side) caliper. Sold individually; order the matching caliper for the other side if you are replacing both.

Is the mounting bracket included?

Yes. This is a semi-loaded assembly, so the mounting bracket ships with the caliper (Mounting Bracket Included: Yes).

Is this a remanufactured caliper?

Yes. It is a Raybestos R-Line remanufactured unit built from inspected OE castings and brackets, with new seals, boots, bleeder screws, hardware, banjo bolts, and O-rings, then 100% pressure tested.

What is the piston and bleeder setup?

It is a floating cast-iron caliper with two pistons measuring 2.357 in (59.868 mm), a 3/8-24 bleeder screw thread, and M16 x 2.0 bracket mounting holes.
