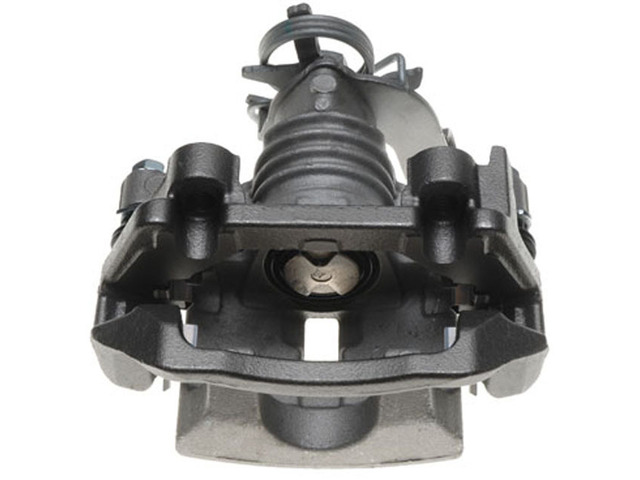

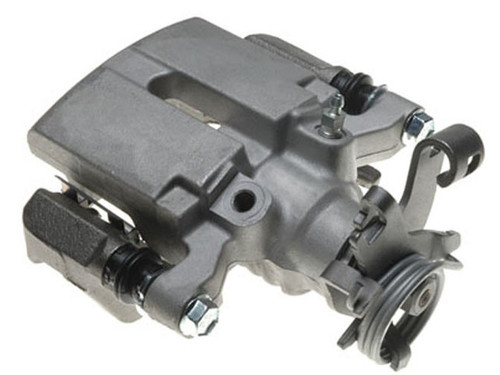

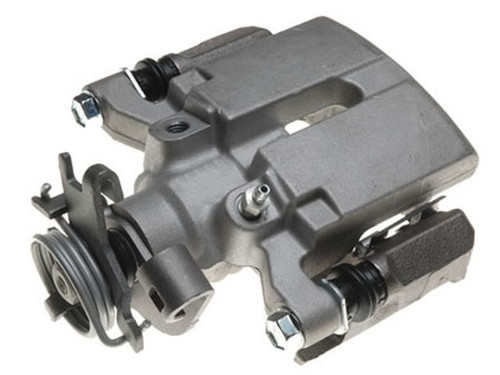

Raybestos Brakes FRC11622 rear left brake caliper for the 2004-2012 Chevrolet Malibu and other vehicles presses the pads against the rotor to slow the wheel. This remanufactured, semi-loaded caliper and bracket assembly has an integral parking brake, and its materials match OE specifications.
- Raybestos R-Line non-plated remanufactured caliper
- New seals, boots and bleeder screws, plus new abutment hardware, banjo bolts and O-rings
- Castings, guide pins and brackets inspected before they are reused
- 100% pressure tested for leak-free operation
- EPDM70 rubber components for heat resistance and durability
Quick facts
- Part: Raybestos Brakes FRC11622 brake caliper
- Also called: disc brake caliper
- Fits: 2004-2012 Chevrolet Malibu and other vehicles
- Position: Rear left
- Material: Aluminum
- Condition: Remanufactured
A rear left brake that pulls to one side, leaks fluid at the wheel or lets the parking brake slip can mean a worn caliper. A pad, hose or guide pin problem can look much alike, so inspect those with the engine off and the car parked before replacing the caliper. Rear calipers are normally replaced in pairs; the right side is a separate part.
Fits
This rear left brake caliper is a direct-fit replacement for the 2004-2012 Chevrolet Malibu, the 2008-2010 Chevrolet HHR and the 2007-2010 Pontiac G5. If yours is a different car, find it in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Rear left
- Quantity per vehicle: 1 for this side
- Piston diameter: 38 mm (1.496 in)
- Bleeder screw thread: M10x1
- Bracket mounting hole: 12 mm, 1.75 mm thread pitch
Build and materials
- Type: Semi-loaded caliper and bracket assembly with integral parking brake
- Casting material: Aluminum
- Finish: Non-plated
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured caliper and bracket assembly for the rear left; this side takes one, and the rear right is ordered separately.
Interchange: 18-B4893 · 10-4270S · 15-14270 · 99-17345B · 18-P4893 · 141.62580 · 142.62580 · 14-4270 · 10-09527-1 · 11-21179-1
SC0984 · SC1065
This part cross-references / interchanges with the following part numbers:
18-B4893, 10-4270S, 15-14270, 99-17345B, 18-P4893, 141.62580, 142.62580, SC0984, SC1065, 14-4270, 10-09527-1, 11-21179-1
Frequently Asked Questions
Will this Chevy Malibu brake caliper fit the rear left of a 2004-2012 Chevrolet Malibu?
Yes. Raybestos Brakes FRC11622 is the rear left caliper for the 2004-2012 Chevrolet Malibu; the right side takes its own caliper. For a different car, look it up in the "Vehicles it fits" section.
What are the piston and bleeder screw sizes on this rear left caliper?
The piston is 38 mm (1.496 in) across and the bleeder screw thread is M10x1. The bracket mounting holes are 12 mm with a 1.75 mm thread pitch.
Does this disc brake caliper have the parking brake built in?
Yes. Raybestos Brakes FRC11622 is an integral parking brake caliper, supplied as a semi-loaded caliper and bracket assembly.
Which parts are replaced on this remanufactured caliper?
Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new parts. Castings, guide pins and brackets are inspected before they are reused.
Does the Raybestos Brakes FRC11622 replace caliper number 18-B4893?
Yes. 18-B4893 is one of the numbers this rear left caliper replaces, along with 10-4270S and 15-14270. The full cross-reference list is at the bottom of the page.
