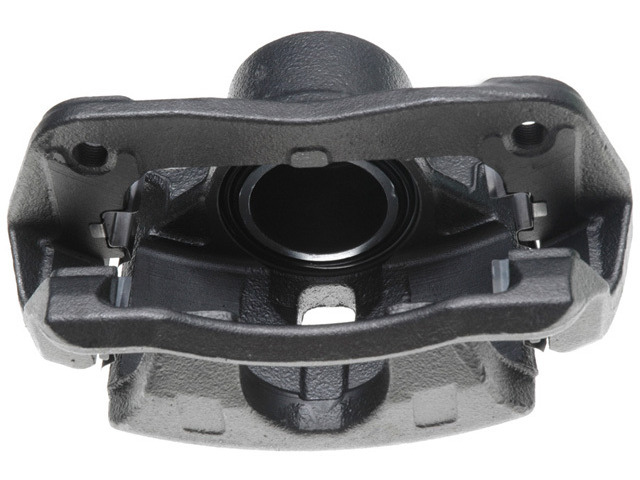

Raybestos Brakes FRC11425 front left brake caliper for the 2003-2017 Honda Accord and other vehicles squeezes the pads against the rotor. This remanufactured disc brake caliper comes as a semi-loaded caliper and bracket assembly.
- R-Line non-plated caliper with all new rubber and sealing components
- Castings, guide pins and brackets are inspected before they are reused
- Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new parts for leak-free operation
- Silicone boots for heavy-duty applications, where applicable
- 100% pressure tested
- EPDM70 rubber components for heat resistance and durability
Quick facts
- Part: Raybestos Brakes FRC11425 brake caliper
- Also called: disc brake caliper
- Fits: 2003-2017 Honda Accord and other vehicles
- Position: Front left
- Material: Cast iron
- Condition: Remanufactured
A pull to one side under braking or a soft-feeling pedal can mean this caliper is worn, though a damaged brake hose or a worn pad can be behind the same complaint, so find the cause before you buy.
Fits
It is listed for a wide range of Honda and Acura models, as a brake caliper for the 2003-2017 Honda Accord, the 2013-2021 Honda Civic and the 2013-2014 Honda Fit. This listing is a single caliper for the front left; the front right is a separate part, and both sides are normally replaced together.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1
- Piston diameter: 57.1 mm (2.248 in)
- Bracket mounting hole size: 12 mm, thread pitch 1.25 mm
- Bleeder screw thread: M10x1
Build and materials
- Caliper type: Floating
- Construction: Semi-loaded caliper and bracket assembly
- Casting material: Cast iron
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured caliper and bracket assembly for the front left. That side takes one, and the front right is ordered separately.
Interchange: 99-00943A · 19-B2660 · 19-P2660 · 141.40078 · 142.40078 · 14-5158
SC3817 · 45019T2FA00 · 45019TEAT00
This part cross-references / interchanges with the following part numbers:
99-00943A, 19-B2660, 19-P2660, 141.40078, 142.40078, SC3817, 45019T2FA00, 45019TEAT00, 14-5158
Frequently Asked Questions
Is this the right caliper for the 2013-2021 Honda Civic?
Yes. Raybestos Brakes FRC11425 is the front left caliper for the 2013-2021 Honda Civic. If your car is not named here, look it up in the "Vehicles it fits" section.
Does this caliper come with the mounting bracket?
Yes. Raybestos Brakes FRC11425 is a semi-loaded caliper and bracket assembly. This listing is one front left unit, and that side takes one.
What piston size does this floating caliper have?
The piston diameter is 57.1 mm (2.248 in), and the bleeder screw thread is M10x1.
How can I tell if this front left caliper is going bad?
Uneven pad wear, a torn boot or fluid residue at the caliper can show up during a brake service. Because this is a brake part, have it inspected promptly rather than driving on it.
Does this caliper cross-reference to number 14-5158?
Yes. 14-5158 is on the Interchange line for Raybestos Brakes FRC11425, along with 99-00943A and 19-B2660.
