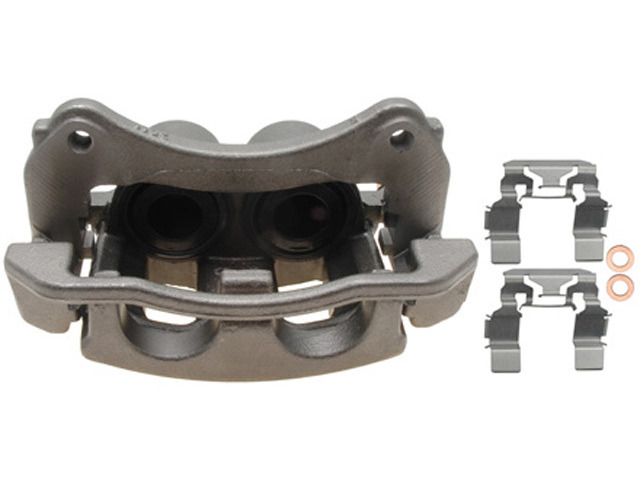

Raybestos FRC11203 front right brake caliper for the 2003-2011 Ford Ranger and other vehicles squeezes the brake pads against the rotor to slow the wheel. This remanufactured semi-loaded caliper and bracket assembly has materials matched to OE specifications.
- Raybestos R-Line non-plated caliper with all new rubber and sealing components
- Castings, guide pins and brackets inspected before they are reused
- Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings replaced with new materials for leak-free operation
- Silicone boots for heavy duty applications, where applicable
- 100% pressure tested
- EPDM70 rubber components for heat resistance and durability
Quick facts
- Part: Raybestos FRC11203 brake caliper
- Also called: disc brake caliper
- Fits: 2003-2011 Ford Ranger and other vehicles
- Position: Front right
- Material: Cast iron
- Condition: Remanufactured
A sticking or leaking disc brake caliper can show up as the car pulling to one side, brake fluid around the wheel or one pad wearing faster than the other. Before you replace it, rule out a worn tire, an alignment problem or a collapsed brake hose, since those can pull the car too.
Fits
It is listed for a wide range of Ford, Mazda and Mercury models, led by the 2003-2011 Ford Ranger, the 2002-2005 Ford Explorer and the 2008-2010 Mazda B2300. This listing is one caliper for the front right of the car; the front left is its own part, ordered separately, and calipers are normally replaced as a pair.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1 for this side
- Piston diameter: 46 mm (1.811 in)
- Bracket mounting hole: 12 mm, thread pitch 1.75 mm
- Bleeder screw thread: 3/8-24
Build and materials
- Caliper type: Floating
- Construction: Semi-loaded caliper and bracket assembly
- Casting material: Cast iron
- Finish: Non-plated
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured semi-loaded caliper and bracket assembly for the front right.
Interchange: 18-B4758 · 15-13261 · 99-17888A · 18-P4758 · 141.65047 · 14-3261 · 11-23116-1
SC1380 · 1L5Z2B120CA
This part cross-references / interchanges with the following part numbers:
18-B4758, 15-13261, 99-17888A, 18-P4758, 141.65047, SC1380, 1L5Z2B120CA, 14-3261, 11-23116-1
Frequently Asked Questions
Is this the right caliper for the 2002-2005 Ford Explorer?
Yes. Raybestos FRC11203 is the front right caliper for the 2002-2005 Ford Explorer. If your car is not named on this page, look it up by year and model in the "Vehicles it fits" section.
Does the FRC11203 come with the caliper bracket?
Yes. Raybestos FRC11203 is a remanufactured semi-loaded caliper and bracket assembly, so the bracket comes with the caliper.
What size is the piston on this front right caliper?
The piston is 46 mm (1.811 in) across, and the caliper is a floating type. The bleeder screw thread is 3/8-24.
How do I tell if a front right caliper is sticking?
Signs can include pulling toward one side when braking, fluid around the wheel or one pad wearing faster than the others. A shop can test the caliper, and a car that pulls should be checked promptly.
Are Raybestos calipers like this one pressure tested?
Yes. Raybestos FRC11203 is 100% pressure tested, and its R-Line remanufacturing replaces the seals, boots and O-rings with new ones.
