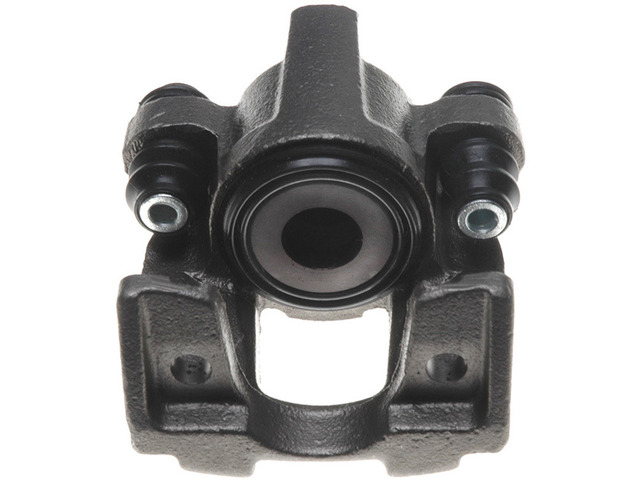

Clamp the brake pads against the rotor and keep the hydraulic side sealed with the Raybestos R-Line Remanufactured Semi-Loaded Disc Brake Caliper FRC11267. It installs at the rear right position on the 2001-2010 Ford Explorer and Mercury Mountaineer, 2003 Ford Explorer Sport, 2003-2005 and 2007-2010 Ford Explorer Sport Trac, 2003-2007 Jeep Liberty, 2003-2006 Jeep TJ, 2003-2006 Jeep Wrangler, and 2003-2005 Lincoln Aviator (All engines).
Remanufactured from OE cores: castings, guide pins, and brackets are inspected before reuse, and the caliper is rebuilt with all-new rubber and sealing components.
New wear parts for leak-free operation: seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are all replaced with new materials.
EPDM70 rubber components chosen for heat resistance, performance, and durability; silicone boots are used for heavy-duty applications where applicable.
100% pressure tested with materials matching OE specifications.
This is a floating, cast-iron caliper with a 1.886 in (47.9 mm) piston bore and a 3/8-24 bleeder screw thread. Sold individually; the listed applications use one per position (qty 1) — replacing the matching caliper on the opposite side together is good practice for balanced braking. Country of origin: Mexico.
Manufacturer part number FRC11267.
Frequently Asked Questions
What does this caliper do?
It houses the piston that clamps the brake pads against the rotor to slow the wheel. If a seized, leaking, or worn rear right caliper is the cause of your braking issue, this replaces it.
Which vehicles and position does it fit?
It is the rear right caliper for 2001-2010 Ford Explorer/Mercury Mountaineer, 2003 Explorer Sport, 2003-2005 and 2007-2010 Explorer Sport Trac, 2003-2007 Jeep Liberty, 2003-2006 Jeep TJ/Wrangler, and 2003-2005 Lincoln Aviator (All).
Is this a new or remanufactured caliper?
It is a remanufactured OE part. Castings, guide pins, and brackets are inspected and reused, while seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are replaced with new materials.
What is included with this semi-loaded caliper?
It ships as a semi-loaded caliper with new abutment hardware, banjo bolts, and sealing components. Confirm whether brake pads are needed separately for your application.
Should I replace both calipers at once?
It is sold individually, and the listed applications use one per position. Replacing the matching caliper on the same axle together is good practice for even, balanced braking.
