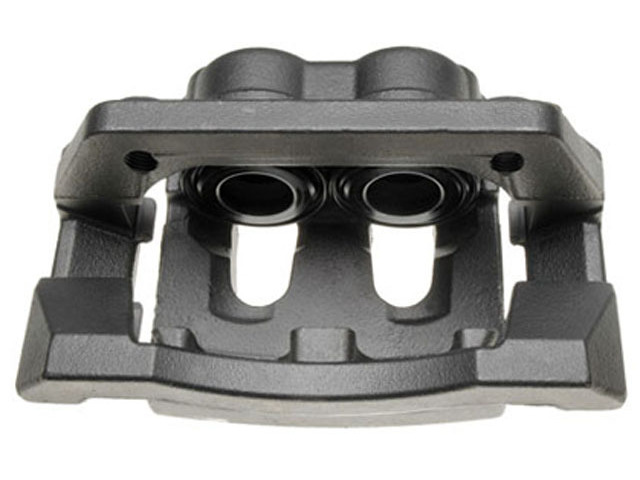

Deliver firm hydraulic clamping at the rear right wheel with the Raybestos R-Line Semi-Loaded Disc Brake Caliper and Bracket Assembly (FRC11587), a remanufactured OE floating caliper that installs as a direct-fit replacement for the 2005-2012 Ford F-350 Super Duty [All] and 2011-2012 Ford F-450 Super Duty [All]. It rebuilds the original casting with all-new rubber and sealing components so the corner can seal and apply pressure as intended.
Remanufactured OE unit: non-plated caliper built from a carefully inspected casting, guide pins, and bracket that are re-used after inspection.
New sealing components: seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are replaced with new materials for leak-free operation.
EPDM70 rubber: EPDM70 rubber components for heat resistance, performance, and durability; silicone boots are fitted for heavy-duty applications where applicable.
Pressure tested: each caliper is 100% pressure tested, with materials matching OE specifications and vehicle-specific designs.
This floating caliper uses a 2.122 in (53.9 mm) piston, a 3/8-24 bleeder screw thread, and a 16.0 mm bracket mounting hole with 2.0 mm thread pitch; the casting is cast iron. Sold as one rear right caliper and bracket assembly. Country of origin: Mexico.
Which vehicles and position does this caliper fit?
It's cataloged for the rear right position on the 2005-2012 Ford F-350 Super Duty [All] and 2011-2012 Ford F-450 Super Duty [All]. Check the Buyer's Guide tab to confirm your vehicle.
Is this a new or remanufactured caliper?
It's a remanufactured Raybestos R-Line OE caliper. The casting, guide pins, and bracket are inspected and re-used, while seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are replaced with new materials.
Does it include brake pads?
This is a semi-loaded caliper and bracket assembly. It ships with the caliper, bracket, and new hardware; the facts don't list brake pads, so plan to supply pads separately as needed.
What piston and specs does it use?
It's a floating caliper with a 2.122 in (53.9 mm) piston, a 3/8-24 bleeder screw thread, and a cast iron casting.
Should I replace both rear calipers together?
Calipers are sold individually, so this listing is for one unit. For even, balanced braking it's good practice to service both sides and inspect the pads and rotors when replacing a caliper.
