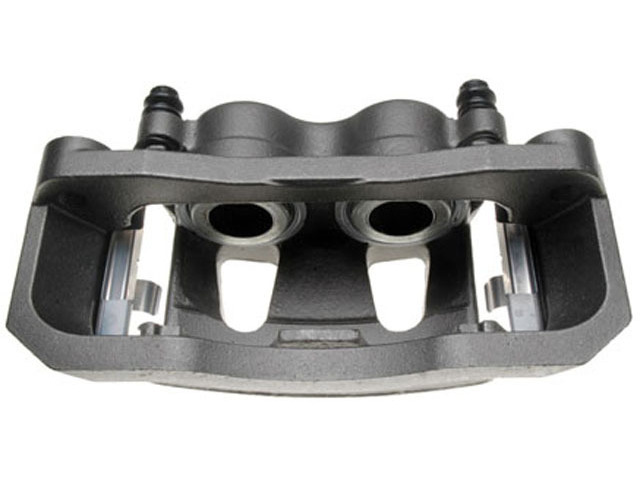

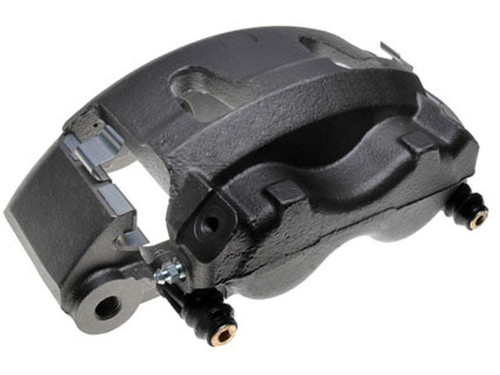

Raybestos Brakes Disc Brake Caliper FRC11509
Raybestos Brakes Disc Brake Caliper FRC11509 - view 2
Raybestos Brakes Disc Brake Caliper FRC11509
Raybestos Brakes Disc Brake Caliper FRC11509 - view 2

Raybestos Brakes Disc Brake Caliper P/N:FRC11509

Be the first to review this product
$68.99
MPN: FRC11509
UPC: 829352169964
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Raybestos Brakes Disc Brake Caliper P/N:FRC11509
Raybestos Brakes Disc Brake Caliper P/N:FRC11509
$68.99

Keep firm, consistent hydraulic pressure on the brake pads with the Raybestos R-Line Remanufactured Semi-Loaded Disc Brake Caliper and Bracket Assembly (FRC11509). This floating caliper assembly is a direct-fit replacement for the listed applications: 1996-2002 Ford E-250 Econoline [All], 1996-2000 Ford E-350 Econoline [All], 1996-2002 Ford E-350 Econoline Club Wagon [All], 1999-2007 Ford E-350 Super Duty [All], 2002-2005 Ford E-350 Club Wagon [All], and 2003-2007 Ford E-250 [All]. If a seized, leaking, or dragging caliper is the cause of uneven braking or a soft pedal on your van, this remanufactured unit replaces it.

  • Remanufactured OE assembly: Built on inspected castings, guide pins, and brackets, with all-new rubber and sealing parts — seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings replaced for leak-free operation.
  • EPDM70 rubber components: Chosen for heat resistance, performance, and durability; silicone boots are used on heavy-duty applications where applicable.
  • 100% pressure tested: Every caliper is rigorously tested, with materials that match OE specifications and vehicle-specific designs.
  • Key specs: Floating cast iron caliper, 2.209 in (56.1 mm) piston diameter, 3/8-24 bleeder screw thread, and 16.000 mm bracket mounting holes.

Country of origin: Mexico. Manufacturer part number FRC11509. Sold individually; for even, balanced braking it is best practice to service both sides of the axle together as a matched set.

This part cross-references / interchanges with the following part numbers:

18-B4760, 18-P4760, 99-18039A

Frequently Asked Questions

What does this caliper assembly include?

It is a semi-loaded caliper and bracket assembly, remanufactured on inspected castings, guide pins, and brackets with all-new seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings.

Which vehicles does FRC11509 fit?

It is a direct-fit replacement for several Ford E-250 and E-350 vans, including Econoline, Super Duty, and Club Wagon models. See the description or the Buyer's Guide tab for the exact year ranges by model.

What are the caliper's key specifications?

It is a floating cast iron caliper with a 2.209 in (56.1 mm) piston diameter, a 3/8-24 bleeder screw thread, and 16.000 mm bracket mounting holes with a 2.000 mm thread pitch.

Is it pressure tested?

Yes. Each unit is 100% pressure tested, and it uses EPDM70 rubber components chosen for heat resistance, performance, and durability.

Do I need to replace both sides?

It is sold individually, and each application uses one. For even, balanced braking it is best practice to service both sides of the axle together as a matched set.
