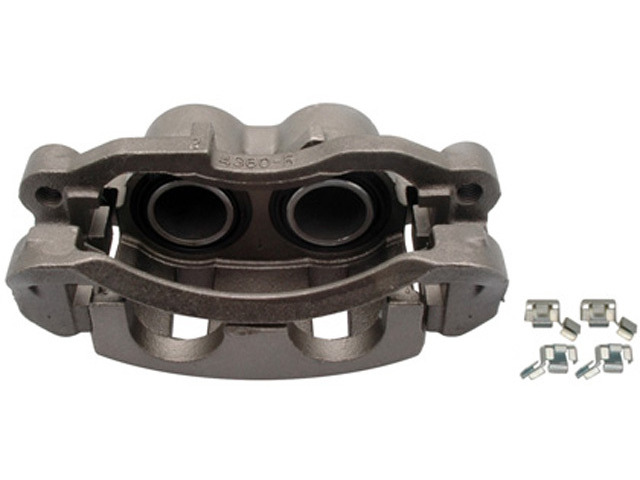

Raybestos Brakes FRC10945 front right brake caliper for the 1998-2005 Chevrolet Blazer and other vehicles is a remanufactured caliper and bracket assembly that uses brake fluid pressure to clamp the rotor when you press the pedal.
- Raybestos R-Line remanufactured OE part; castings, guide pins and brackets are inspected before they are reused.
- Materials match OE specifications and vehicle-specific designs.
- New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings for leak-free operation.
- Every caliper is 100% pressure tested for reliable braking performance.
- EPDM70 rubber components for heat resistance, performance and durability.
A sticking or worn caliper can make the vehicle pull to one side under braking, leave a brake dragging, or show wet brake fluid around the caliper. A worn rotor, a collapsed brake hose or a front-end alignment problem can also produce a pull, so track down the cause before you order.
This floating disc brake caliper also fits the 1998-2005 GMC Jimmy and the 1998-2004 Chevrolet S10, one per vehicle on the front right. This listing covers the right side only, and the front left caliper is normally replaced at the same time. If your vehicle isn't named here, the "Vehicles it fits" section shows whether it fits.
Specifications
Fit and size
- Position: front right
- Quantity per vehicle: 1
- Pistons: 2
- Piston diameter: 45.974 mm (1.810 in)
- Bleeder screw thread: M10x1.50
- Bracket mounting hole: M14, 2 mm thread pitch
- Casting number: 356
Build and materials
- Caliper type: floating
- Condition: remanufactured
- Assembly: semi-loaded caliper and bracket
- Casting material: cast iron
- Surface finish: coated caliper and bracket
- Rubber components: EPDM70
- Country of origin: Mexico
In the box
One Raybestos R-Line remanufactured front right caliper with its mounting bracket.
Interchange: 99-17302A · 16-4694 · 18-4694XB · 18-B4694 · 18-P4694 · 141.66025 · 142.66025 · 14-4247
SC0190
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
99-17302A, 16-4694, 18-4694XB, 18-B4694, 18-P4694, 141.66025, 142.66025, SC0190, 14-4247
Frequently Asked Questions
Is this the correct brake caliper for the front right of a 1998-2004 Chevy S10?
Yes. Raybestos Brakes FRC10945 fits the front right wheel of the 1998-2004 Chevrolet S10, and the truck takes one caliper in that position.
Does FRC10945 work as a brake caliper for the 1998-2005 GMC Jimmy and the 1998-2005 Chevrolet Blazer?
Yes. Raybestos Brakes FRC10945 fits the front right of the 1998-2005 GMC Jimmy and 1998-2005 Chevrolet Blazer; for other models, look under the "Vehicles it fits" section.
What piston size and bleeder thread does this Raybestos R-Line caliper have?
This floating caliper has two pistons with a listed piston diameter of 45.974 mm (1.810 in), and its bleeder screw thread is M10x1.50.
Could a pull to the right when braking mean this front right caliper is sticking?
Yes, it can. A sticking front right caliper can cause a pull, a dragging brake or fluid leaking at the caliper; have it inspected or replaced promptly rather than driving on it.
Which parts are renewed when the Raybestos FRC10945 caliper is remanufactured?
Raybestos Brakes FRC10945 gets new seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings, and every caliper is 100% pressure tested.
