Raybestos Brakes Disc Brake Caliper FRC10694

Raybestos Brakes Disc Brake Caliper FRC10694 - view 2

Raybestos Brakes Disc Brake Caliper P/N:FRC10694

Be the first to review this product

$89.99

MPN: FRC10694

UPC: 753497953693

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Caliper P/N:FRC10694

$89.99

Description

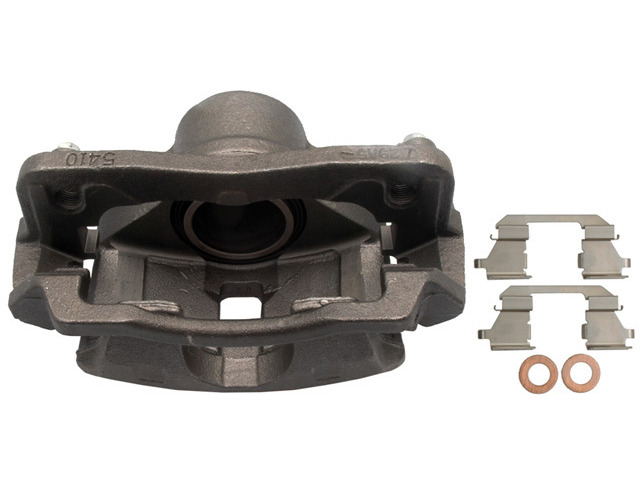

Restore firm, quiet stops with the Raybestos Brakes R-Line Remanufactured Semi-Loaded Disc Brake Caliper and Bracket Assembly (FRC10694) — a direct-fit front Honda Civic caliper for the 1996-2011 Honda Civic [All / L4-1.8L], 1997-2000 Acura EL [All], and 2010-2014 Honda Insight [All]. This floating-type caliper carries a cast iron casting and mounts on the front axle to clamp the pads against the rotor when you apply the brakes.

Remanufactured from OE cores: rebuilt using all-new rubber and sealing components — seals, boots and bleeders — while castings, guide pins and brackets are carefully inspected before reuse, then each caliper is tested for reliable braking performance.
New wear parts for leak-free operation: seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are all replaced with new materials.
EPDM70 rubber components: chosen for heat resistance, performance and durability, with silicone boots on heavy-duty applications where applicable.
100% pressure tested with materials that match OE specifications and vehicle-specific designs.

Specs include a 2.122 in (53.9 mm) piston, M10x1 bleeder screw thread, and a 12.000 mm bracket mounting hole with 1.250 mm thread pitch. Made in Mexico. Sold individually; for even, balanced braking replace both front calipers as a matched pair.

Interchange: 19-3449 · 19-B1833 · 19-P1833 · 141.40043 · 141.40085 · 142.40043 · 99-00929B
193449 · 19B1833 · 19P1833 · 14140043 · 14140085 · 14240043 · 9900929B · SC1820 · 45019S5DA00

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

19-3449, 19-B1833, 19-P1833, 141.40043, 141.40085, 142.40043, SC1820, 45019S5DA00, 99-00929B

Frequently Asked Questions

What vehicles does the FRC10694 caliper fit?

It's a direct-fit front caliper for the 1996-2011 Honda Civic (All and L4-1.8L), the 1997-2000 Acura EL (All), and the 2010-2014 Honda Insight (All). See the Buyer's Guide tab to confirm your vehicle.

Is this a Honda Civic brake caliper for the front?

Yes. The catalog lists this as a front-axle caliper and bracket assembly. It is sold individually, so order the correct side for your vehicle.

What is replaced during remanufacturing?

The seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are all replaced with new materials for leak-free operation, while castings, guide pins and brackets are inspected before reuse.

Does this include the mounting bracket?

Yes. As a semi-loaded caliper and bracket assembly, it ships with the bracket and new abutment hardware. Confirm whether your application needs pads separately.

What are the caliper's key specs?

It's a floating-type caliper with a cast iron casting, a 2.122 in (53.9 mm) piston, an M10x1 bleeder screw thread, and a 12.000 mm bracket mounting hole with 1.250 mm thread pitch.
