Raybestos Brakes Disc Brake Caliper P/N:FRC12594

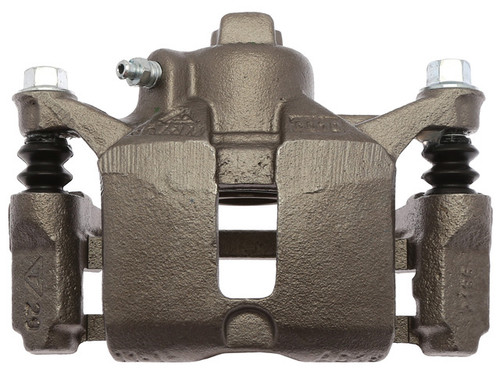

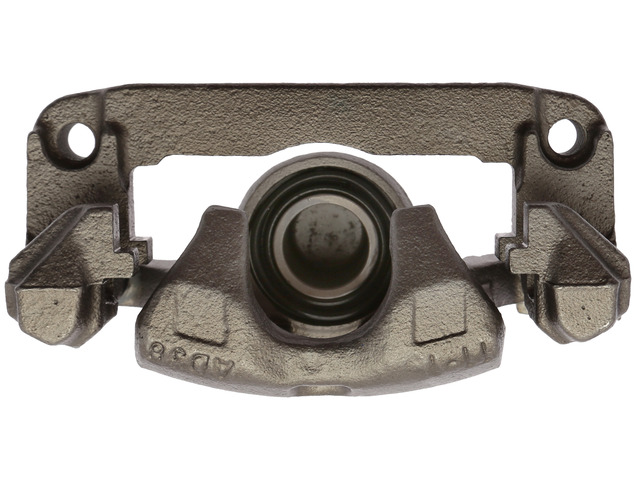

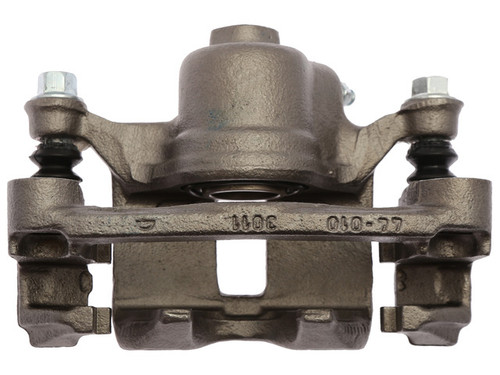

Clamp the rear right brake pads against the rotor with the Raybestos R-Line Semi-Loaded Disc Brake Caliper and Bracket Assembly, MPN FRC10842 — a remanufactured floating caliper that carries the piston and squeezes the pads when hydraulic pressure is applied. It installs as a direct-fit replacement for the rear right position on the 1997-2004 Buick Regal, 2003-2005 Buick Century, 2008-2009 Buick Allure, 2008-2009 Buick LaCrosse, 2000-2010 Chevrolet Impala, 2000-2007 Chevrolet Monte Carlo, 2000-2005 Chevrolet Venture, 1998-2002 Oldsmobile Intrigue, 1997-2003 Pontiac Grand Prix, 1999-2004 Pontiac Montana, and 1997-1999 Pontiac Trans Sport (all engines) — see the Buyer's Guide tab for the full list.
Specs: floating caliper type, cast-iron casting, piston diameter 1.496 in (38 mm), and an M10x1.5 bleeder screw thread. Country of origin: Mexico.
Interchange: 15-14250 · 1514250 · 99-17300A · 9917300A · 99-17300B · 9917300B · 99-17395A · 9917395A · 99-17395B · 9917395B · 18-B4645 · 18B4645 · 18-B4645HD · 18B4645HD · 18-P4645 · 18P4645 · 141.62554 · 142.62554 · SC0966 · 11-4251 · 114251 · 14-4250 · 144250. Manufacturer part number FRC10842.
This part cross-references / interchanges with the following part numbers:
What position does this caliper fit?
The catalog lists it for the rear right position on the covered applications. It is a single caliper and bracket assembly, so order the matching part for the opposite side if you need it.
Is this a remanufactured caliper?
Yes. It is a remanufactured Raybestos R-Line unit rebuilt with all-new seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings, then 100% pressure tested for leak-free operation.
Are brake pads included?
This is a semi-loaded caliper and bracket assembly with new abutment hardware. Brake pads are typically supplied separately, so inspect and replace worn pads and rotors as needed during service.
What is the piston diameter and caliper type?
It uses a floating caliper design with a piston diameter of 1.496 in (38 mm) and an M10x1.5 bleeder screw thread, matching OE specifications for the listed vehicles.
Should I replace both calipers at the same time?
This listing is for one caliper. Replacing both sides of the axle as a matched pair is a good practice for even, balanced braking, though it is a recommendation rather than a requirement.
