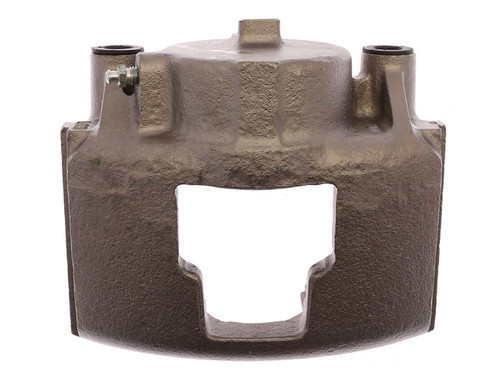

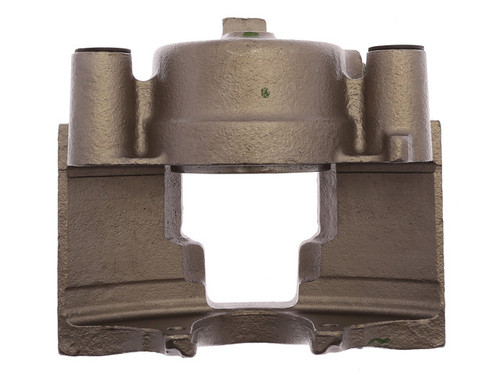

The Raybestos Brakes FRC10184 front left brake caliper for the 1994-1999 Dodge Ram 2500 and other vehicles is a remanufactured, semi-loaded unit. It turns hydraulic pressure from the brake pedal into clamping force at the front left wheel.
- Raybestos R-Line non-plated caliper, remanufactured from an OE part with all-new rubber and sealing components
- Castings, guide pins and brackets are inspected before they are reused
- Materials match OE specifications and vehicle-specific designs

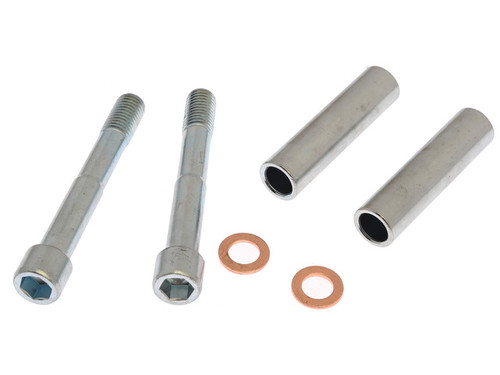

- New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings for leak-free operation
- Each caliper is 100% pressure tested
- EPDM70 rubber components for heat resistance, performance and durability
A sticking or worn caliper can show up as a pull to one side when you brake or as pads wearing unevenly. Those signs alone don't prove the caliper is at fault, since a collapsed brake hose can act the same way. Plan on replacing both front calipers together; this listing is the front left one only.
The 2001-2002 GMC Savana 2500 and the 2001-2002 Chevrolet Express 2500 are also among the vans it fits, along with a wide range of Chevrolet, GMC and Dodge trucks. If your truck or van isn't named here, look up its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: front left
- Quantity per vehicle: 1
- Piston quantity: 1
- Piston diameter: 85.852 mm (3.380 in)
- Bleeder screw thread: M10X1.00

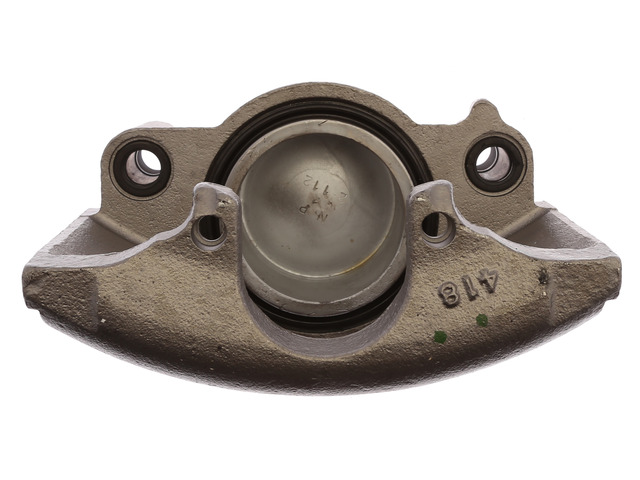

- Casting number: 418
Build and materials
- Condition: remanufactured (Raybestos R-Line)
- Configuration: semi-loaded
- Casting material: cast iron
- Surface finish: coated
- Country of origin: Mexico
In the box
One remanufactured front left brake caliper. The vehicle takes one at this position.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is this the right brake caliper for a 1994-1999 Dodge Ram 2500?
Yes. The Raybestos Brakes FRC10184 fits the 1994-1999 Dodge Ram 2500 at the front left wheel, and the truck takes one caliper in that spot.
Does the FRC10184 also fit the 2001-2002 GMC Savana 2500 or 2001-2002 Chevrolet Express 2500?
Yes. Raybestos Brakes FRC10184 fits the front left of the 2001-2002 GMC Savana 2500 and the 2001-2002 Chevrolet Express 2500; other trucks and vans can be looked up by year in the "Vehicles it fits" section.
What piston size and bleeder thread does this disc brake caliper have?
This front left caliper has a single piston measuring 85.852 mm (3.380 in) across and an M10X1.00 bleeder screw thread.
Which parts are replaced with new ones on this R-Line remanufactured caliper?
This caliper gets new seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings, and the cast iron casting is inspected before it is reused.
What can a sticking or leaking front caliper look or smell like?
A failing front caliper can give off a burning smell after a drive or leave brake fluid on the inside of the wheel. Have the brakes looked at promptly instead of driving on them.
