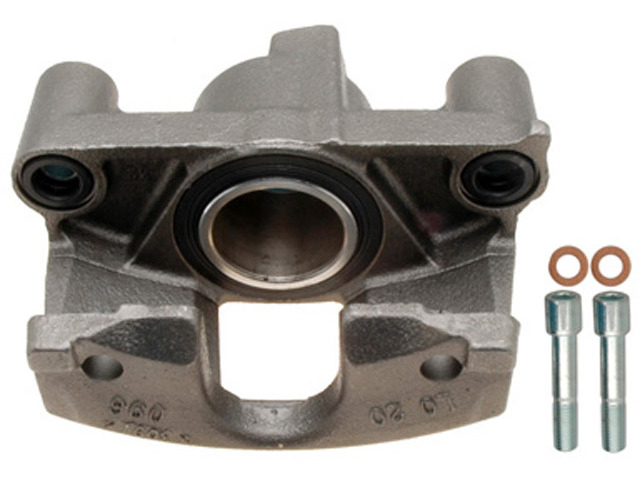

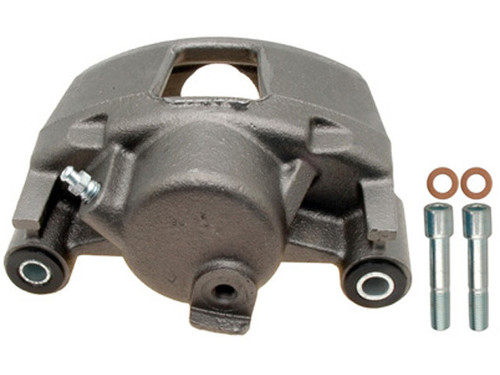

Squeeze the front brake pads against the rotor with the Raybestos R-Line Remanufactured Semi-Loaded Disc Brake Caliper, MPN FRC10163. This front caliper houses the hydraulic piston that presses the pads onto the disc, and it drops into the FRONT LEFT or FRONT RIGHT position across the 1990-1998 Buick Skylark, 1992-1996 Chevrolet Beretta, 1992-2005 Chevrolet Cavalier, 1992-1996 Chevrolet Corsica, 1992-1998 Oldsmobile Achieva, 1990-1991 Oldsmobile Cutlass Calais, 1990-1998 Pontiac Grand Am, 1992-1994 Pontiac Sunbird and 1995-2005 Pontiac Sunfire.
Remanufactured OE core: rebuilt from an OE caliper using all-new rubber and sealing parts; castings, guide pins and brackets are inspected before being reused.
New leak-resistant components: seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials.
EPDM70 rubber for heat resistance, performance and durability, with silicone boots on heavy-duty applications where applicable.
100% pressure tested; cast iron casting, 2 in (50.8 mm) piston, and an M10x1.5 bleeder screw thread.
Materials match OE specifications. Sold individually — for even, balanced braking, replacing both front calipers as a matched pair is recommended. Country of origin: Mexico.
Manufacturer part number FRC10163.
Frequently Asked Questions
Which side does this caliper fit?
It is cataloged for the front axle in both the FRONT LEFT and FRONT RIGHT positions on the listed applications. It is sold individually, so order the correct side (or two for the full front axle).
Are brake pads included?
This is a semi-loaded caliper, so it ships with the new seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings. Brake pads are not listed among the included components.
What are signs the caliper may need replacing?
Common caliper symptoms include brake fluid leaks, a sticking or dragging caliper, uneven pad wear, or a pull to one side. Diagnose the cause first, since these signs can have other sources.
What is a remanufactured OE caliper?
It is an original caliper rebuilt with all-new rubber and sealing parts; the castings, guide pins and brackets are inspected before reuse, and each unit is 100% pressure tested.
What are the key specs?
It uses a cast iron casting, a 2 in (50.8 mm) piston, and an M10x1.5 bleeder screw thread, with EPDM70 rubber components. Country of origin: Mexico.
