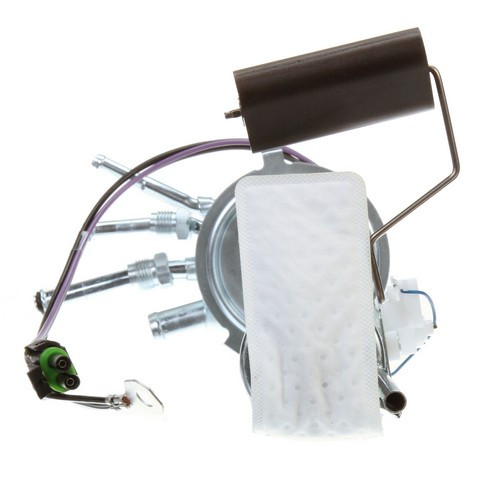

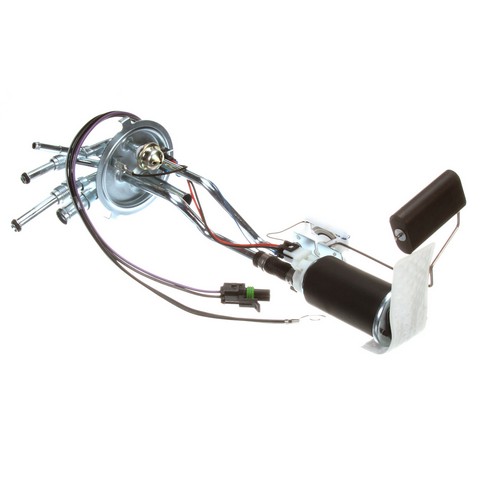

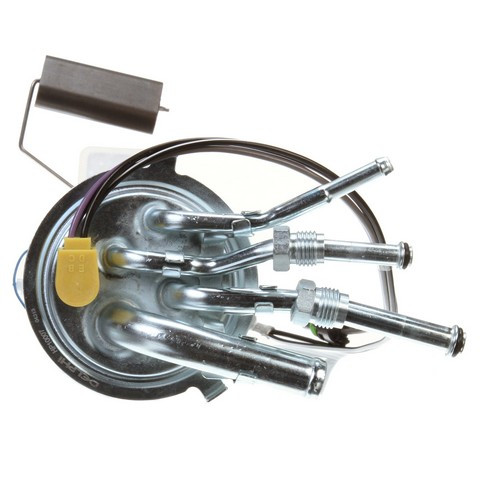

Delphi HP10007 fuel pump and sender assembly for the 1991-1993 Chevrolet S10 4-cylinder 2.5L or V6 2.8L, the 1991-1995 S10 V6 4.3L and other vehicles delivers fuel from the tank to the engine and carries the float arm that feeds the gas gauge. This fuel pump hanger assembly is built to Delphi's OE standards.
- Delphi fuel pump designed to operate under extreme temperatures with quick engine starts
- Metal hanger tubes routed so they never touch the tank, which eliminates noise and vibration during operation
- Empty float height and float retention held to specification for a correct gas gauge reading
- Lower amperage draw places less load on the vehicle's electrical system
- Validated and tested before it is matched to its application
Quick facts
- Part: Delphi HP10007 fuel pump and sender assembly
- Fits: the 1991-1993 Chevrolet S10 4-cylinder 2.5L or V6 2.8L, the 1991-1995 S10 V6 4.3L and other vehicles
- Condition: New
Hard starting, stalling, a whine from the tank or a gas gauge that reads wrong can mean the pump or float arm is wearing out. A clogged fuel filter, a failed relay or a blown fuse can be behind these symptoms too, so find the cause before you buy. Each vehicle takes one assembly, one per fuel tank.
Fits
This assembly fits the 1991-1993 Chevrolet S10 4-cylinder 2.5L or V6 2.8L and the 1991-1995 S10 V6 4.3L. It also fits the 1992-1993 GMC Sonoma 4-cylinder 2.5L or V6 2.8L and the 1992-1995 Sonoma V6 4.3L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine codes: L4-2.5L, V6-2.8L, V6-4.3L
Build and materials
- Float arm: included
- Condition: New
In the box

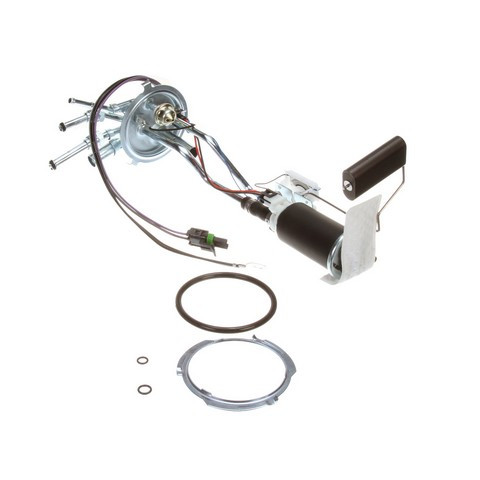

One fuel pump and sender assembly with float arm, seal, lock ring, two O-rings and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing.
- An instruction sheet comes with the part for the steps.
Frequently Asked Questions
Is the Delphi HP10007 a Chevy S10 fuel pump for 1991-1995 models with the V6 4.3L?
Yes. Delphi HP10007 fits the 1991-1995 Chevrolet S10 V6 4.3L and the 1992-1995 GMC Sonoma V6 4.3L, and each vehicle takes one assembly.
Does the Delphi HP10007 come with a float arm and O-rings?
Yes. The Delphi HP10007 comes with the float arm, a seal, a lock ring, two O-rings and an instruction sheet.
Does this fuel pump and sender assembly match the original float height?
Yes. Empty float height and float retention match OE specifications, which supports a correct gas gauge reading.
Can a gas gauge that reads wrong mean the float arm on this assembly is failing?
Yes, it can. A wrong gauge reading, hard starting or a whine from the tank can come from the pump or float arm, and a shop can test the fuel system to confirm.
Does this fuel pump and sender assembly need anything done to the tank before installing?
Yes. Check and clean the fuel tank first, and follow the instruction sheet in the box for the steps.
