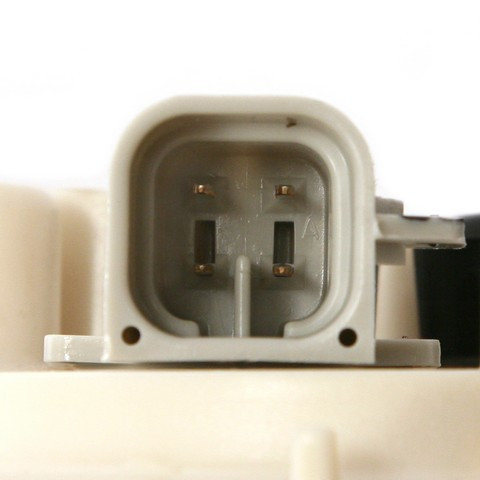

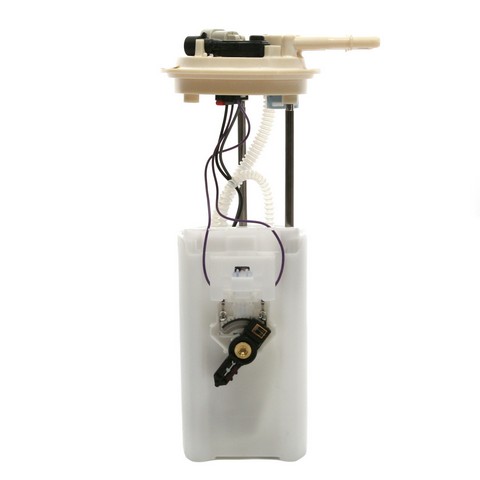

Delphi FG0156 fuel pump module for the 1998-1999 Oldsmobile Intrigue V6 3.8L, the 1999-2000 Intrigue V6 3.5L and other vehicles delivers fuel from the tank to the engine.
- Empty float height and float retention matched for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG0156 fuel pump module
- Also called: fuel pump assembly
- Fits: the 1998-1999 Oldsmobile Intrigue V6 3.8L, the 1999-2000 Intrigue V6 3.5L and other vehicles
- Condition: New
Hard starting, stalling or an erratic gas gauge can mean the fuel pump module is failing. A clogged fuel filter, a bad relay or a damaged fuel line can be behind these signs too, so track down the cause before buying a new module. The part is also called a fuel pump assembly.
Fits
The vehicles it fits include the 1998-1999 Oldsmobile Intrigue V6 3.8L and the 1999-2000 Intrigue V6 3.5L. This Delphi fuel pump module also covers the 1998-2000 Pontiac Grand Prix V6 3.1L or 3.8L and the 1998-1999 Buick Century V6 3.1L. It is built to Delphi's OE standards. For any other car, look it up in the "Vehicles it fits" section. A single module goes into each car.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Condition: New
In the box

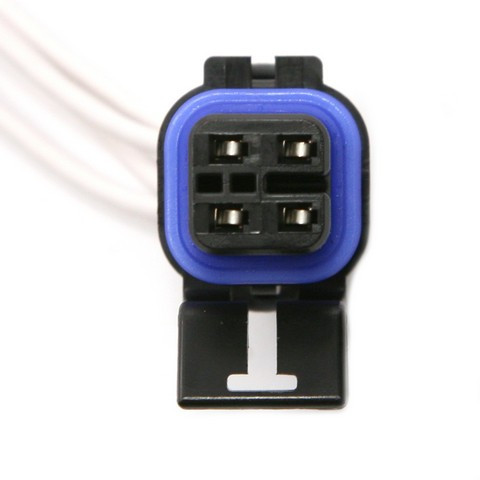

One fuel pump module with float arm, seal, splices, wire harness and instruction sheet.
Installation notes
- Check the fuel tank and clean it before installing the module.
- The instruction sheet that comes with the part covers the steps.
Interchange: 953-0033 · 953-5003 · 402-P3537M
MU1727 · MU228 · MU232 · MU71 · 4010158 · E3537M · DFG0156 · F2548A · 67319 · 67473 · 67479 · P74792M · 19180107 · 19331288 · 25174048 · 25323833 · 25325702 · EFP871M · 1AMFP00034 · A33004 · SP3537M · SP6177M · USEP3537M
This part cross-references / interchanges with the following part numbers:
MU1727, MU228, MU232, MU71, 4010158, E3537M, DFG0156, F2548A, 67319, 67473, 67479, P74792M, 953-0033, 953-5003, 19180107, 19331288, 25174048, 25323833, 25325702, EFP871M, 1AMFP00034, 402-P3537M, A33004, SP3537M, SP6177M, USEP3537M
Frequently Asked Questions
Will Delphi FG0156 fit a 1998-2000 Pontiac Grand Prix V6 3.1L?
Yes. Delphi FG0156 fits the 1998-2000 Pontiac Grand Prix V6 3.1L or 3.8L. For any other car, look it up in the "Vehicles it fits" section.
What comes with the Delphi fuel pump module assembly?
The Delphi FG0156 includes the module with its float arm, a seal, splices, a wire harness and an instruction sheet.
Does the Delphi module's float height match OE specifications?
Yes. Empty float height and float retention match OE specifications, which keeps the gas gauge reading correct.
Does the Delphi fuel module draw less current?
Yes. This module's lower amperage draw puts less load on the vehicle's electrical system.
Can I match this module by number 25325702?
Yes. 25325702 is on the Interchange line for Delphi FG0156, along with 953-0033 and the other cross-reference numbers.
