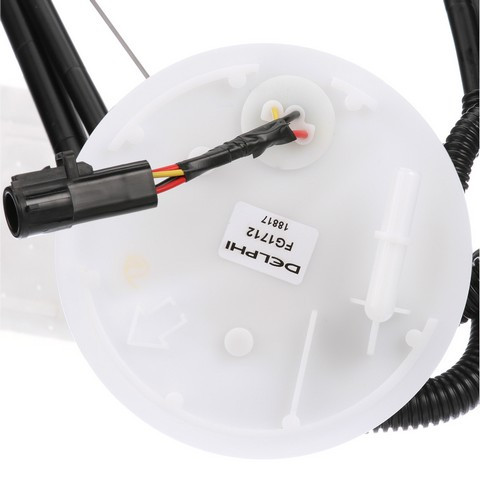

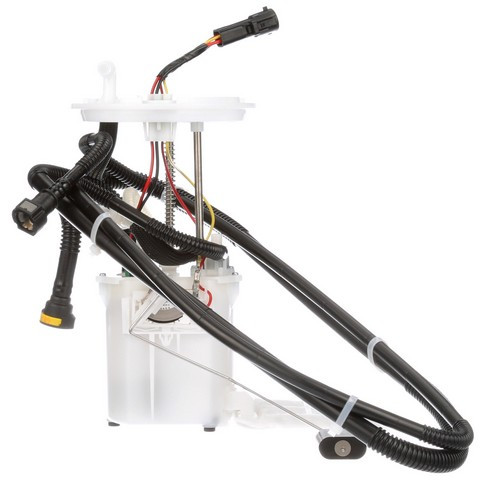

Delphi FG1712 fuel pump module for the 2003-2005 Jaguar S-Type V6 3.0L or V8 4.2L and other vehicles delivers fuel from the tank to the engine. The Delphi fuel pump module assembly is made to the company's own OE standards.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw, so less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG1712 fuel pump module
- Also called: fuel pump assembly
- Fits: 2003-2005 Jaguar S-Type V6 3.0L or V8 4.2L and other vehicles
- Condition: New
A fuel pump assembly that is wearing out can show up as hard starting, stalling or a gas gauge that reads wrong. Before you replace the module, rule out a bad fuel pump relay or fuse and a wiring fault, since those can produce similar symptoms.
Fits
It fits the 2003-2005 Jaguar S-Type V6 3.0L or V8 4.2L, the 2004-2005 Jaguar Vanden Plas V8 4.2L and the 2004-2005 Jaguar XJ8 V8 4.2L. This listing is one module, and the 2004-2005 Jaguar XJ8 V8 4.2L takes a single one.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Condition: New
In the box
One fuel pump module assembly with float arm, one seal and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the module for the steps.
Interchange: 4010479 · E8577M · DFG1712 · 67935 · P76604M · A30377 · C2C20262 · C2C22131 · C2C24164 · C2C6606 · XR849199 · SP5063M · USEP8577M
This part cross-references / interchanges with the following part numbers:
4010479, E8577M, DFG1712, 67935, P76604M, A30377, C2C20262, C2C22131, C2C24164, C2C6606, XR849199, SP5063M, USEP8577M
Frequently Asked Questions
Is this Delphi fuel pump module made for the 2003-2005 Jaguar S-Type V6 3.0L or V8 4.2L?
Yes. Delphi FG1712 fits the 2003-2005 Jaguar S-Type V6 3.0L or V8 4.2L, and it also fits the 2004-2005 Jaguar XJ8 V8 4.2L.
What comes with the Delphi fuel module?
The Delphi FG1712 module is a fuel pump module assembly that comes with a float arm, a seal and an instruction sheet.
Does the float on this Delphi module match the original float height?
Yes. The empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Which signs can point to a worn fuel pump module?
A whine from the tank, hesitation under load or a fuel gauge that reads wrong can be signs of a worn module. A shop can test fuel pressure to confirm.
Does Delphi FG1712 replace part number E8577M?
Yes. E8577M is one of the numbers Delphi FG1712 replaces, along with 4010479, 67935 and A30377.
