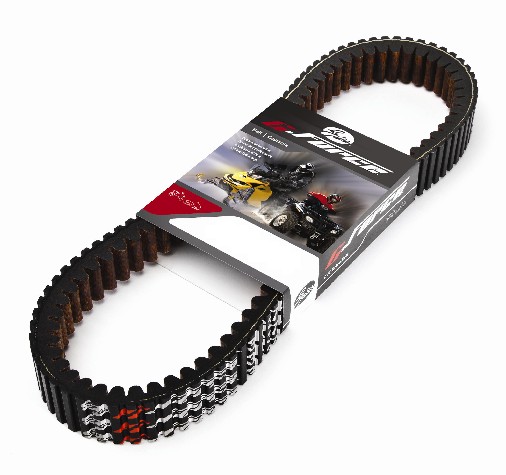

Gates 03G3470 CVT belt for the 2024-2026 Kawasaki KAF400 Mule SX 4X4 and other vehicles carries engine power between the drive and driven clutches of a continuously variable transmission. The Gates CVT belt in the G-Force WorkHorse line is made for the toughest tasks and trails, with up to 2x the life of the original G-Force belt.
- G-Force WorkHorse line, optimized for engines of less than 800cc
- Proprietary Ethylene Elastomer (EE) compound for improved axial stiffness and heat tolerance
- Higher loads and peak torque with less heat fade and less speed loss
- High tensile aramid cord for acceleration, shock load resistance and extreme fatigue resistance

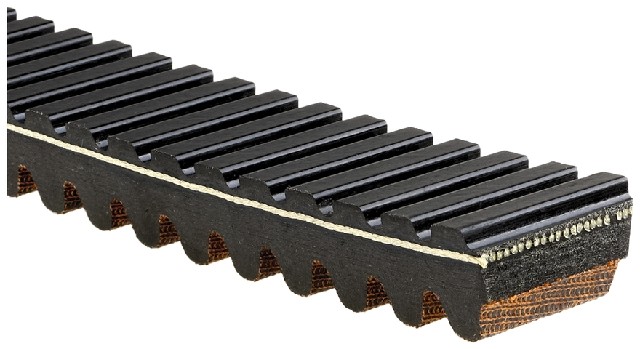

- Improved crack and wear resistance for durability, with a double notched construction
- Not for turbocharged or heavily modified engine applications
Quick facts
- Part: Gates 03G3470 CVT belt
- Also called: cvt transmission belt
- Fits: 2024-2026 Kawasaki KAF400 Mule SX 4X4 and other vehicles
- Position: Drive belt
- Material: Ethylene Elastomer belt with aramid cord
- Condition: New
A worn cvt transmission belt can show up as slipping, a loss of top speed, or cracked, glazed or frayed edges when you inspect it with the engine off. Before you replace the belt, rule out worn or dirty clutch parts, since a problem there can look much the same.
Fits
This belt is listed for a wide range of Kawasaki KAF400 Mule models, led by the 2024-2026 Kawasaki KAF400 Mule SX 4X4, the 2024-2026 Kawasaki KAF400 Mule SX 4X4 XC and the 2024-2026 Kawasaki KAF400 Mule SX 4X4 XC LE. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Drive belt
- Quantity per vehicle: 1
- Cross section designation: RVS-R
- Top width: 26 mm (1.031 in)
- Outside circumference: 911 mm (35.875 in)
Build and materials
- Type: Power sport CVT belt
- Construction: Double notched
- Belt material: Ethylene Elastomer
- Cord material: Aramid
- Grade type: OE Performance
- Condition: New
- Country of origin: United States
In the box
One CVT belt. A vehicle needs just the one.
Interchange: XTX2257 · 27GBS912 · 03C3470 · UA451 · UHQ451 · UXP451
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
03G3470, XTX2257, 27GBS912, 03C3470, UA451, UHQ451, UXP451
Frequently Asked Questions
Does the Gates 03G3470 CVT belt fit the 2024-2026 Kawasaki KAF400 Mule SX 4X4 XC LE?
Yes. Gates 03G3470 is listed for the 2024-2026 Kawasaki KAF400 Mule SX 4X4 XC LE. For any other model, check its years and engine in the "Vehicles it fits" section.
What size is the Gates 03G3470 belt?
Gates 03G3470 has a top width of 26 mm (1.031 in) and an outside circumference of 911 mm (35.875 in). Its cross section designation is RVS-R.
What is this CVT belt made of?
The belt body is Ethylene Elastomer with an aramid cord, in a double notched construction.
Can I use this belt on a turbocharged or modified engine?
No. This belt is not for turbocharged or heavily modified engine applications. It is optimized for engines of less than 800cc.
Does Gates 03G3470 replace the UA451 belt?
Yes. Gates 03G3470 is a listed interchange for that belt, along with the other numbers on the Interchange line.
