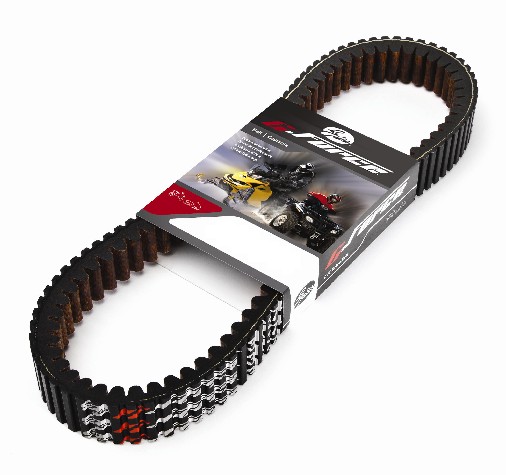

Gates 19G3218 CVT belt for the 2024-2026 Suzuki LT-A400F KingQuad ASi SE and other vehicles carries engine power between the clutches of the continuously variable transmission. It lasts up to 2x as long as the original G-Force belt.
- G-Force WorkHorse line, optimized for engines under 800cc
- Crack and wear resistance for improved durability
- Proprietary Ethylene Elastomer (EE) compound adds axial stiffness and heat tolerance, with less heat fade and speed loss
- High tensile aramid cord for acceleration, shock load and fatigue resistance when hauling heavy loads over rough terrain
Quick facts
- Part: Gates 19G3218 CVT belt
- Also called: cvt transmission belt
- Fits: the 2024-2026 Suzuki LT-A400F KingQuad ASi SE and other vehicles
- Position: Drive belt
- Material: Ethylene Elastomer belt with aramid cord
- Condition: New
A worn belt can show up as slipping under load, sluggish acceleration, or cracked and frayed edges. A worn drive clutch, driven clutch or weak clutch spring can be behind these signs too, so find the cause before buying a belt. This belt is not for turbocharged or heavily modified engines.
Fits
It is listed for a wide range of Suzuki, Kawasaki and Arctic Cat models, led by the 2024-2026 Kawasaki KVF750 Brute Force 750 and the 2024-2026 Kawasaki KVF750 Brute Force 750 EPS. The 2024-2026 Suzuki LT-A400F KingQuad ASi SE takes one belt. If your machine is not named here, look up its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Drive belt
- Quantity per vehicle: 1
- Top width: 30 mm (1.167 in)
- Outside circumference: 848 mm (33.375 in)
- Cross section designation: RVS-R
- Angle: 28 degrees
Build and materials
- Construction: Double notched
- Belt material: Ethylene Elastomer
- Cord material: Aramid
- Grade type: OE Performance
- Condition: New
- Country of origin: United States
Interchange: 72-4001
UA407 · 19C3218 · CTX2217 · HP2017 · HP2018 · HP2019 · HP2027 · HPX2217 · HPX2218 · XTX2217 · DBKA0019EX · DBWH0019 · WBB0019 · UA450 · UHQ450 · UXP450
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
UA407, 19C3218, 19G3218, CTX2217, HP2017, HP2018, HP2019, HP2027, HPX2217, HPX2218, XTX2217, DBKA0019EX, DBWH0019, WBB0019, 72-4001, UA450, UHQ450, UXP450
Frequently Asked Questions
Does the Gates 19G3218 fit the 2024-2026 Kawasaki KVF750 Brute Force 750?
Yes. Gates 19G3218 is listed for the 2024-2026 Kawasaki KVF750 Brute Force 750, which takes one belt. For other models, look in the "Vehicles it fits" section.
How wide and how long is this CVT belt?
Gates 19G3218 has a top width of 30 mm (1.167 in) and an outside circumference of 848 mm (33.375 in). Its cross section designation is RVS-R, with a 28 degree angle.
Can this cvt transmission belt go on a turbocharged or modified engine?
No. It is not for turbocharged or heavily modified engine applications. It is optimized for engines under 800cc.
What is the Gates G-Force WorkHorse belt made of?
The belt body is Ethylene Elastomer (EE) with a high tensile aramid cord. Its construction is double notched.
Is 72-4001 an interchange number for this belt?
Yes. 72-4001 is listed as a number Gates 19G3218 replaces, along with the others on the Interchange line.
