CVT Belt for 2021-2023 Cub Cadet Challenger M 550 & More - Gates 32G3596

$196.99

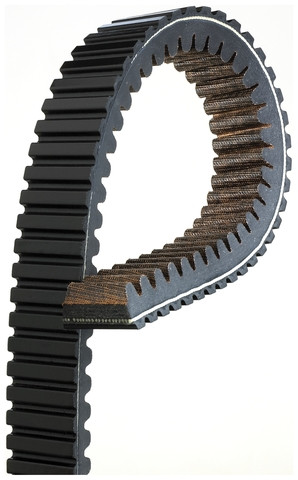

Gates Automatic Continuously Variable Transmission (CVT) Belt 32G3596

Gates Automatic Continuously Variable Transmission (CVT) Belt 32G3596 - view 2

Gates Automatic Continuously Variable Transmission (CVT) Belt 32G3596 - view 3

Gates Automatic Continuously Variable Transmission (CVT) Belt 32G3596 - view 4

Part number: 32G3596

UPC: 770075826484

Condition: New

Weight: 0.98 LBS

Item Package Quantity: 1

$196.99

Current Stock: 49

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Gates Automatic Continuously Variable Transmission (CVT) Belt P/N:32G3596

$196.99

Description

Gates 32G3596 CVT belt for the 2021-2023 Cub Cadet Challenger M 550 and other vehicles transfers engine power through the CVT drive. Also called a CVT transmission belt, it has improved durability that gives up to 2x the life of the original G-Force Belt.

G-Force WorkHorse CVT belt optimized for engines under 800cc, made for tough tasks and trails
Improved crack and wear resistance for longer belt life
Proprietary Ethylene Elastomer (EE) compound for axial stiffness and heat tolerance, with higher peak torque, less heat fade and less speed loss
High tensile aramid cord for acceleration, shock load resistance and extreme fatigue resistance when hauling heavy loads over aggressive terrain
Not for use in turbocharged or heavily modified engine applications

Quick facts

Part: Gates 32G3596 CVT belt
Also called: CVT transmission belt
Fits: 2021-2023 Cub Cadet Challenger M 550 and other vehicles
Position: Drive belt
Material: Ethylene Elastomer belt with aramid cord
Condition: New

A worn CVT belt can show up as slipping, lost speed or weaker pull under load. Other drive parts can cause those too, so first look the belt over with the engine off and cool. Check for cracks, worn notches and sidewall wear before you replace it.

Fits

The 2021-2023 Cub Cadet Challenger M 550, the 2021-2023 Cub Cadet Challenger M 750 EPS and the 2019-2023 Cub Cadet Challenger MX 550 all take this belt, and so do many other vehicles. Each of them takes one belt.

Specifications

Fit and size

Position: drive belt
Quantity per vehicle: 1
Top width: 1.316 in (33 mm)
Outside circumference: 37.137 in (943 mm)
Cross section designation: RVS-R
Angle: 30 degrees

Build and materials

Type: power sport CVT belt
Construction: double notched
Belt material: ethylene elastomer
Cord material: aramid
Grade type: OE Performance
Condition: new
Country of origin: United States

Interchange: 503-01128

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

503-01128, 32G3596

Buyer's Q&A

Frequently Asked Questions

Does the Gates 32G3596 fit the 2021-2023 Cub Cadet Challenger M 750 EPS?

Yes, Gates 32G3596 fits the 2021-2023 Cub Cadet Challenger M 750 EPS and the 2019-2023 Cub Cadet Challenger MX 550. If your machine is a different model, look it up in the "Vehicles it fits" section.

Is this Gates CVT belt made for turbocharged engines?

No. This belt is not for turbocharged or heavily modified engine applications. It is optimized for vehicles with engines under 800cc.

What are the width and length of the 32G3596 belt?

Gates 32G3596 has a top width of 1.316 in (33 mm) and an outside circumference of 37.137 in (943 mm). It has a 30-degree angle and an RVS-R cross section.

What are the belt and cord materials in this CVT belt?

The belt body is ethylene elastomer, a proprietary EE compound, and the cord is aramid. The belt has a double notched construction.

What does a worn CVT belt feel like when riding?

A worn belt can show as slipping, lost speed or weaker pull under load, or as cracks and worn notches you can see with the engine off. Other drive parts can also cause slipping.
