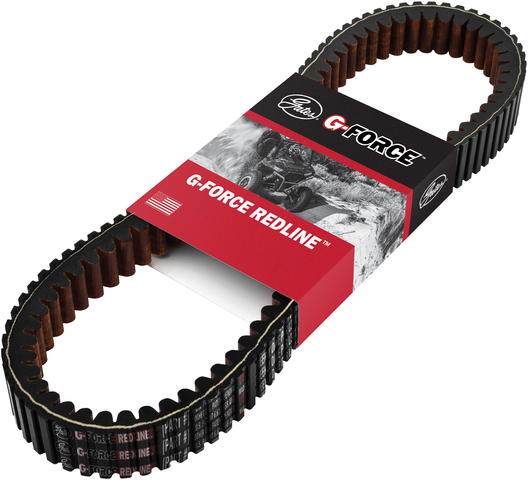

Gates 47R4572 CVT belt for the 2008 Polaris IQ Shift and other vehicles carries engine power between the drive and driven clutches. This Gates CVT belt is part of the G-Force RedLine line and is built for extreme off-road use.
- G-Force RedLine design for acceleration, top speed and low speed ratio and energy loss in extreme off-road use
- Crack- and wear-resistant construction for the most demanding applications
- Greater heat resistance and recovery, even under severe duty cycles
- Optimized, patented compound that maximizes axial stiffness for higher continuous torques or loads
- Double-notched construction with an aramid cord
Quick facts
- Part: Gates 47R4572 CVT belt
- Also called: cvt transmission belt
- Fits: 2008 Polaris IQ Shift and other vehicles
- Position: Drive belt
- Material: EPDM belt with aramid cord
- Condition: New
A worn clutch sheave or a sticking clutch weight can cause slipping and weak acceleration too, so find the cause before you buy a belt. If the CVT transmission belt shows cracks, glazing, frayed edges or worn notches, this Gates G-Force RedLine CVT belt replaces it.
Fits
The 2008 Polaris IQ Shift, the 2001-2007 Polaris 500 XC SP and the 2007 Polaris 600 HO Cfi Switchback are among the models this belt fits, along with many more Polaris models. Open the "Vehicles it fits" section to check your exact model and year.
Specifications
Fit and size
- Position: drive belt
- Quantity per vehicle: 1
- Top width: 37 mm (1.469 in)
- Outside circumference: 1191 mm (46.875 in)
- Pitch length: 1161 mm (45.724 in)
- Pitch width: 35.1 mm (1.382 in)
- Thickness: 15.9 mm (0.627 in)
- Angle: 28
- Cross section designation: RVS-R
Build and materials
- Type: power sport specialty high performance CVT belt
- Construction: double notched
- Belt material: EPDM
- Cord material: aramid
- Grade type: OE Improved
- Condition: new
- Country of origin: United States
In the box
One CVT belt. The vehicle takes one belt.
Interchange: 47C4572 · 47G4572 · HPX5020 · RPX5020 · XTX5020 · DBP01080 · 37GBSSV1180 · 71261 · 3211080
This part cross-references / interchanges with the following part numbers:
47C4572, 47G4572, HPX5020, RPX5020, XTX5020, DBP01080, 37GBSSV1180, 71261, 47R4572, 3211080
Frequently Asked Questions
Does the Gates 47R4572 fit the 2001-2007 Polaris 500 XC SP?
Yes. Gates 47R4572 fits the 2001-2007 Polaris 500 XC SP. For any other model, open the "Vehicles it fits" section and check your own model and year.
What size is this Gates G-Force belt?
Gates 47R4572 is 37 mm (1.469 in) wide at the top, 1191 mm (46.875 in) around the outside and 15.9 mm (0.627 in) thick, with a 1161 mm (45.724 in) pitch length.
What is the Gates RedLine belt made of?
This RedLine belt is made of EPDM with an aramid cord, and it has a double-notched construction.
Has the Gates G-Force CVT belt been tested on race vehicles?
Yes. The design was tested under extreme conditions in controlled environments and also on race vehicles.
Is 47G4572 a cross-reference for Gates 47R4572?
Yes. 47G4572 is on the interchange list for Gates 47R4572, so shoppers can use it to match this belt.
