Gates 34796 thermostat for the 2002-2003 Volvo S60 5-cylinder 2.4L, the 2002-2004 S60 5-cylinder 2.3L, the 2003-2009 S60 5-cylinder 2.5L, the 2005-2009 S60 5-cylinder 2.4L and other vehicles regulates coolant temperature to help the engine run more efficiently. This Gates thermostat, also called an engine coolant thermostat, is an integrated housing unit.

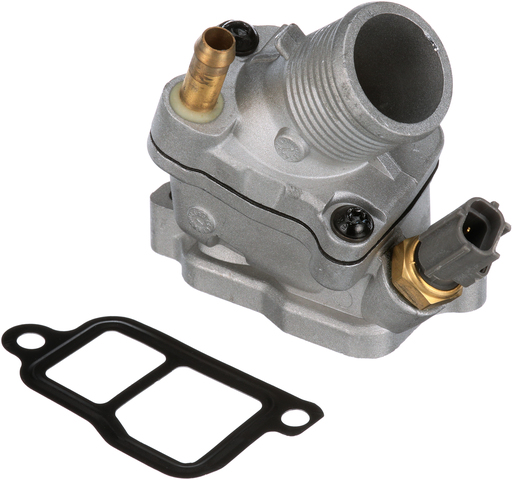

- Thermostat, insert, seal and housing in one bolt-on unit for a complete job
- Precision coolant temperature regulation and control
- Application-specific adaptive MAP-control
- Thermostat starts to open at 194°F (90°C)
Quick facts
- Part: Gates 34796 thermostat
- Also called: engine coolant thermostat
- Fits: the 2002-2003 Volvo S60 5-cylinder 2.4L, the 2002-2004 S60 5-cylinder 2.3L, the 2003-2009 S60 5-cylinder 2.5L, the 2005-2009 S60 5-cylinder 2.4L and other vehicles
- Condition: New
A thermostat that sticks or opens late can show up as a temperature gauge reading high or low, a slow warm-up or coolant seeping at the housing. Before you replace the thermostat, rule out a coolant leak elsewhere, a worn water pump or a faulty gauge or sensor; a shop can test the cooling system. Each engine has a single thermostat, so one unit per engine is all it takes.
Fits
The 2002-2003 Volvo V70 5-cylinder 2.4L, the 2002-2004 V70 5-cylinder 2.3L, the 2003-2007 V70 5-cylinder 2.5L, the 2005 V70 5-cylinder 2.4L and the 2003-2007 Volvo XC70 5-cylinder 2.5L all fit it, along with the S60 above and more Volvo models. It meets or exceeds OE standards for fit, form and performance. If your Volvo is not named here, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bolt holes: 2
- Outlet inside diameter: 0.31 in and 1.18 in
- Outlet outside diameter: 0.39 in and 1.52 in
Build and materials
- Type: integrated housing thermostat
- Start-to-open temperature: 194°F (90°C)
- Seals: 1
- Grade type: OE Exact
- Condition: New
- Country of origin: China
In the box
One thermostat with its insert, seal and housing as an all-in-one unit. A jiggle pin check valve is not included.
Interchange: 909-194 · HT194-909
86162 · TM2090D · 15369 · 30637216 · 30637243 · 30650469 · 30777476 · 31219205 · 31293698 · 31293700
This part cross-references / interchanges with the following part numbers:
86162, TM2090D, 909-194, HT194-909, 34796, 15369, 30637216, 30637243, 30650469, 30777476, 31219205, 31293698, 31293700
Frequently Asked Questions
Is this the Volvo V70 thermostat for the 2003-2007 V70 5-cylinder 2.5L?
Yes. Gates 34796 fits the 2003-2007 Volvo V70 5-cylinder 2.5L. For another year or engine, look in the "Vehicles it fits" section.
Will this Volvo S60 thermostat work on the 2005-2009 S60 5-cylinder 2.4L?
Yes. Gates 34796 is listed for the 2005-2009 Volvo S60 5-cylinder 2.4L, and also for the 2002-2003 S60 5-cylinder 2.4L.
Does the Gates 34796 come with the seal and housing, or only the thermostat?
Yes, it is an all-in-one unit with the thermostat, insert, seal and housing. A jiggle pin check valve is not included.
At what temperature does the Gates 34796 start to open?
This thermostat starts to open at 194°F (90°C).
What can a failing integrated housing thermostat look like?
The temperature gauge can read high or sit low, and the heater can be slow to warm up. Coolant seeping at the housing is another visible sign, checked once the engine is cool.
