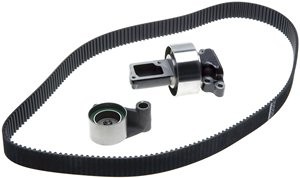

Gates TCK240A timing belt component kit for the 1993-1995 Toyota 4Runner V6 3.0L and other vehicles replaces the belt, tensioner and idler of the timing drive together. This Gates timing belt kit puts the three parts under one part number to simplify parts sourcing.
- Hydraulic tensioner and idler supplied with the belt
- HSN belt, 36 mm wide, with 193 curvilinear (II) teeth
- Gates PowerGrip Timing Component Kit (TCK) line
Quick facts
- Part: Gates TCK240A timing belt component kit
- Also called: engine timing belt component kit
- Fits: 1993-1995 Toyota 4Runner V6 3.0L and other vehicles
- Material: HSN (belt)
- Condition: New
Cracked or frayed belt edges, a ticking noise at the front of the engine, or a misfire can mean the timing belt is worn, though worn spark plugs or a failing ignition coil can bring on a misfire as well. Sort out which one is at fault before ordering.
Fits
Also called an engine timing belt component kit, it fits the 1993-1995 Toyota 4Runner V6 3.0L, the 1993-1995 Toyota Pickup V6 3.0L and the 1993-1994 Toyota T100 V6 3.0L. Each engine takes one kit, with one belt, one tensioner and one idler.
Specifications
Fit and size
- Quantity per vehicle: 1
- Components: 3
- Belt teeth: 193
- Belt width: 36 mm (1.417 in)
Build and materials
- Belt material: HSN
- Tooth type: Curvilinear (II)
- Tensioner type: Hydraulic
- Timing marks: yes
- Condition: New
- Gates warranty: matches the original manufacturer's timing belt replacement intervals and covers parts, labor and other associated costs
- Country of origin: Mexico
In the box
One timing belt, one hydraulic tensioner, one idler and the installation instructions. A water pump is not included.
Installation notes
- Detailed installation instructions come with the kit.
- Instruction sheet number: 0098-1009.
Interchange: 2470-0240
BK240 · PP240LK1 · PP240LK2 · GTK0240A · TTIK077 · 2522402
This part cross-references / interchanges with the following part numbers:
TCK240A, BK240, PP240LK1, PP240LK2, 2470-0240, GTK0240A, TTIK077, 2522402
Frequently Asked Questions
Is the Gates TCK240A the right kit for a 1993-1995 Toyota 4Runner V6 3.0L?
Yes. Gates TCK240A is listed for the 1993-1995 Toyota 4Runner V6 3.0L, and that engine takes one kit.
What is in this Gates PowerGrip timing belt kit?
Gates TCK240A holds one timing belt, one hydraulic tensioner and one idler, along with installation instructions.
Is TCK240A a Gates timing belt and water pump kit?
No. This listing is a belt, tensioner and idler kit with no water pump. A water pump is a separate part.
How wide is the belt in the Gates TCK240A?
The belt is 36 mm (1.417 in) wide and has 193 teeth in a curvilinear (II) tooth profile.
Does the Gates TCK240A come with installation instructions?
Yes. Detailed installation instructions are included with the kit as instruction sheet 0098-1009.
