Gates TCK254 timing belt component kit for the 1994-1997 Subaru Impreza H4 1.8L, the 1995-1998 Impreza H4 2.2L and other vehicles replaces the timing belt together with its tensioner and idlers. Sold as an engine timing belt component kit, it covers a complete system replacement in one order.
- PowerGrip Premium Timing Component Kit (TCK) from Gates
- Belt, hydraulic tensioner, two idlers and an idler sprocket in one kit
- HSN belt, 30 mm wide, with 211 teeth and a modified curvilinear (III) tooth type
Quick facts
- Part: Gates TCK254 timing belt component kit
- Also called: engine timing belt component kit
- Fits: the 1994-1997 Subaru Impreza H4 1.8L, the 1995-1998 Impreza H4 2.2L and other vehicles
- Material: HSN (belt)
- Condition: New
A cracked or frayed belt, missing teeth, a noisy tensioner or idler, or an engine that runs rough can mean the timing system is worn. A failing water pump, a leaking camshaft seal or an ignition fault can be behind some of these signs too, so find the cause before buying the kit.
Fits
It fits the 1994-1997 Subaru Impreza H4 1.8L, the 1995-1998 Impreza H4 2.2L and the 1994-1998 Subaru Legacy H4 2.2L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Contents: belt, tensioner, 2 idlers, idler sprocket
- Number of components: 5
- Belt teeth: 211
- Belt width: 30 mm (1.181 in)
Build and materials
- Belt material: HSN
- Tooth type: Modified curvilinear (III)
- Tensioner type: Hydraulic
- Timing marks: Yes
- Condition: New
- Warranty: the Gates warranty matches the original manufacturer's timing belt replacement intervals and covers labor and other associated costs as well as parts
- Country of origin: Korea, Republic of
In the box

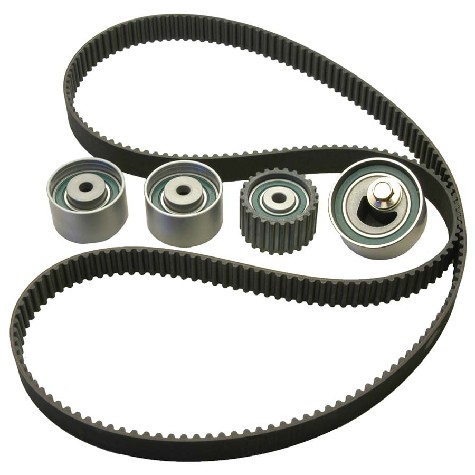

One timing belt, one hydraulic tensioner, two idlers, one idler sprocket and the instruction sheet. This listing is one kit, and the car needs one kit. A water pump is not included.
Installation notes
- Installation instructions come with the kit (instruction sheet 0098-1632).
Interchange: 2460-0254
BK254 · TB254K1 · 95254K1 · 95254K1S · GTK0254 · TTIK066 · 2522540
This part cross-references / interchanges with the following part numbers:
TCK254, BK254, TB254K1, 95254K1, 95254K1S, 2460-0254, GTK0254, TTIK066, 2522540
Frequently Asked Questions
Is Gates TCK254 a Subaru Impreza timing belt kit for the 1995-1998 Impreza H4 2.2L?
Yes. Gates TCK254 fits the 1995-1998 Subaru Impreza H4 2.2L, and it also fits the 1994-1997 Impreza H4 1.8L.
Is the Gates timing belt kit for Subaru, TCK254, right for the 1994-1998 Subaru Legacy H4 2.2L?
Yes. Gates TCK254 fits the 1994-1998 Subaru Legacy H4 2.2L, and that car takes one kit.
How wide is the belt in the Gates TCK254 kit, and how many teeth does it have?
The belt is 30 mm (1.181 in) wide with 211 teeth and a modified curvilinear (III) tooth type. It is made of HSN.
Is this a Gates timing belt and water pump kit?
No. This Gates timing belt component kit has no water pump. It holds the belt, a hydraulic tensioner, two idlers and an idler sprocket, so a water pump is a separate part.
Does Gates TCK254 come with installation instructions?
Yes. Installation instructions come with Gates TCK254, listed as instruction sheet 0098-1632.
