Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP224
$165.99
(You save)
Searching for a Gates carbon drive belt kit? The Gates PowerGrip Premium Timing Component Kit with Water Pump (TCKWP224) packages a full timing service in one box, dropping in as a direct-fit replacement for the 1996-2000 Honda Civic, 1996-1997 Honda Civic del Sol, and 1997-2000 Acura EL, all with the L4-1.6L engine. Gates bundles the same premium components as its TCK timing kits — timing belt, spring-type tensioner and tensioner spring — plus a water pump, so every critical part of the system is renewed together. Because a timing-belt-driven water pump should always be replaced with the belt, this all-in-one kit helps you avoid a repeat job.

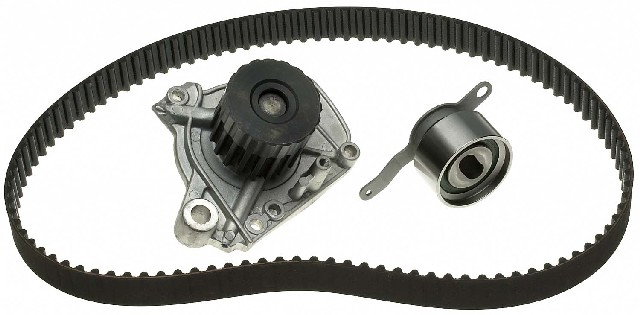

Kit contents: timing belt, tensioner, tensioner spring, water pump, and rubber seal ring, with detailed installation instructions.
Belt specs: 104 teeth, 24 mm (.945 in) wide, with a black HSN top and fiberglass cord and a Modified Curvilinear (III) tooth type; no timing marks.
Water pump: designed and built for long-lasting, efficient cooling.
OE Exact grade: the Gates warranty matches the original manufacturer's timing belt replacement intervals — not just for parts, but also for labor and associated costs.
An idler pulley, mounting bolts, and an installation tool are not included. Country of origin: China.
It includes a timing belt, spring-type tensioner, tensioner spring, water pump, and rubber seal ring, with installation instructions. No idler pulley, mounting bolts, or install tool are included.
What vehicles does this kit fit?
It fits the 1996-2000 Honda Civic, 1996-1997 Honda Civic del Sol, and 1997-2000 Acura EL, all with the L4-1.6L engine. See the Buyer's Guide tab to confirm your vehicle.
Should I replace the water pump with the timing belt?
Gates advises replacing a timing-belt-driven water pump at the same time as the belt. This kit bundles both so the whole system is serviced in one job.
What are the timing belt specifications?
The belt has 104 teeth, measures 24 mm (.945 in) wide, uses a black HSN top with fiberglass cord, and has a Modified Curvilinear (III) tooth type. It carries no timing marks.
Does this Gates belt drive system include mounting bolts?
No — mounting bolts, an idler pulley, and an install tool are not included. Consult the vehicle service information for the correct fasteners and whether they may be reused.
