Monroe Shocks & Struts 58648 rear shock absorber for the 2008-2020 Dodge Grand Caravan and other vehicles combines damping with a calibrated coil spring that adjusts to changing weight. It is meant for occasionally hauling or towing varying loads.

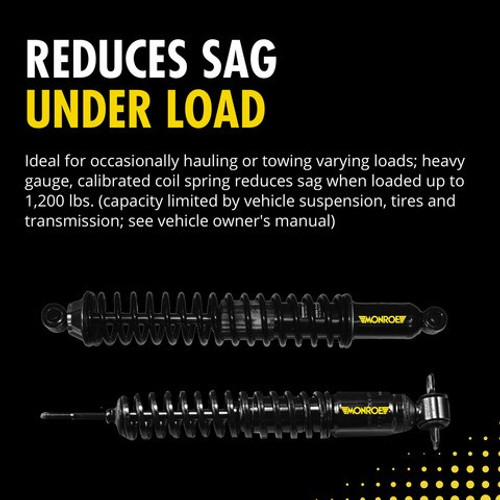

- Monroe Load Adjusting series with a heavy gauge calibrated coil spring that reduces sag under loads up to 1,200 lbs

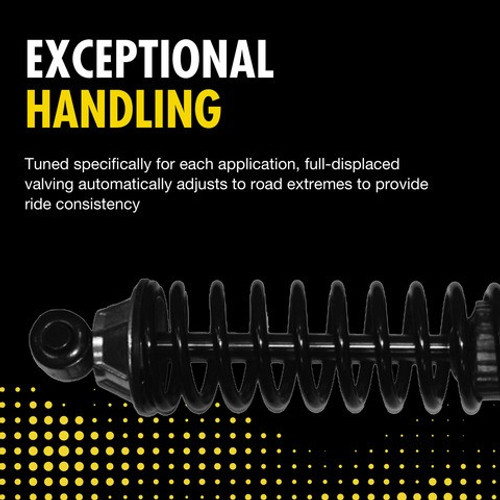

- Full-displaced valving tuned for each application adjusts to road extremes for a consistent ride

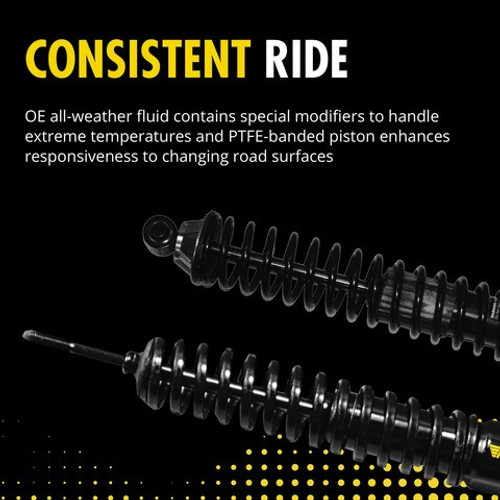

- All-weather fluid with special modifiers for extreme temperatures
- PTFE-banded piston reduces friction between the piston and the pressure tube
- Self-lubricating fluid seal retains gas, and the heavy-duty nitrocarburized rod is made for long life

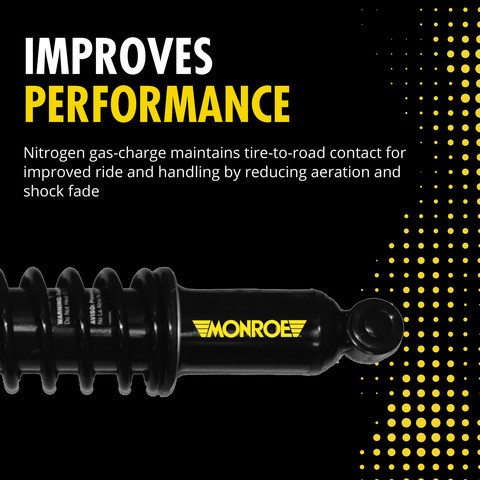

- Nitrogen gas-charge reduces aeration and shock fade to keep the tire in contact with the road
Quick facts
- Part: Monroe Shocks & Struts 58648 shock absorber
- Fits: 2008-2020 Dodge Grand Caravan and other vehicles
- Position: Rear
- Condition: New
A rear end that sags or keeps bouncing after bumps can mean a worn shock or spring. Before ordering, look over the shock and spring for leaks, cracks or rust with the engine off, because other rear suspension parts can give similar symptoms. The 1,200 lbs figure is limited by suspension, tires and transmission; see the owner's manual.
Fits
This rear assembly is listed for the 2008-2020 Dodge Grand Caravan, the 2008-2016 Chrysler Town & Country and the 2012-2015 Ram C/V, each with a quantity of 1. Open the Buyer's Guide tab to check your exact model and engine. The listing is a pack of 2, and rear shocks are normally replaced together.
Specifications
Fit and size
- Position: Rear
- Pack: 2
- Quantity per application: 1
- Compressed length: 10.49 in (266.4 mm)
- Extended length: 15.57 in (395.5 mm)
- Travel length: 5.08 in
- Upper mount: Loop Bushing and Sleeve Mount, 12MM Sleeve ID X 41.28MM Sleeve OAL
- Lower mount: Loop Bushing and Sleeve Mount, 12MM Sleeve ID X 1.5/8 Sleeve OAL
Build and materials
- Type: Shock absorber and coil spring assembly, Load Adjusting
- Damping type: Oil
- Gas charge: Nitrogen
- Dust shield: Metal, included
- Condition: New
- Country of origin: China
In the box

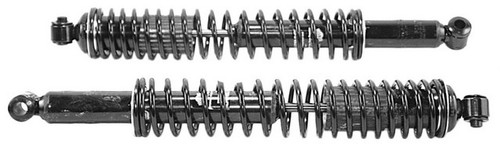

Two shock absorber and coil spring assemblies, each with a dust shield.
Interchange: SC00021 · G64042
