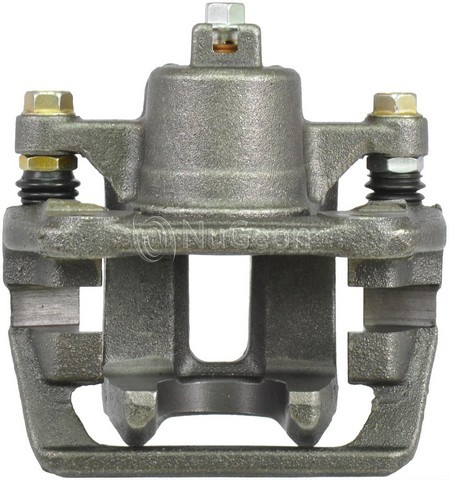

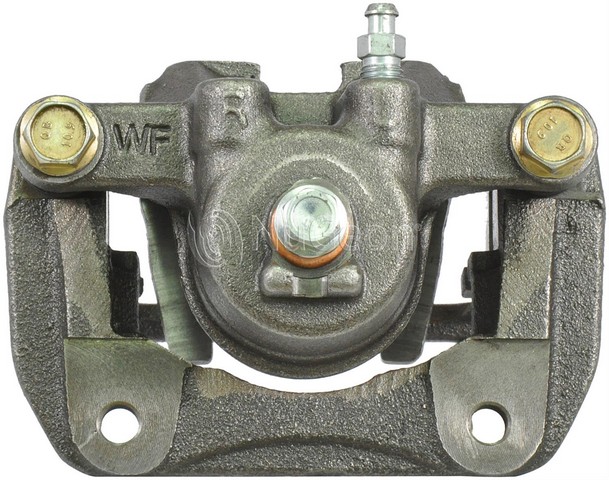

Nugeon 99-01017B rear left brake caliper for the 2003-2011 Honda Element and other vehicles presses the pads against the rotor to slow the wheel. This remanufactured unit is the floating type.
- Single steel piston, 38 mm (1.496 in) in diameter
- Cast iron caliper body with a rust-preventative finish
- Banjo bolt inlet fitting
Quick facts
- Part: Nugeon 99-01017B brake caliper
- Also called: disc brake caliper
- Fits: 2003-2011 Honda Element and other vehicles
- Position: Rear left
- Material: Cast iron
- Condition: Remanufactured
Brake fluid around the caliper or a car that pulls to one side can mean a rear caliper is failing. A pull alone does not prove the caliper is the problem; a collapsed brake hose is another common cause.
Fits
It is a direct-fit replacement brake caliper for the 2003-2011 Honda Element, the 1999-2008 Acura TL and the 2001-2003 Acura CL. This listing is one caliper for the rear left, and the 2003-2011 Honda Element takes one at that wheel. The rear right is ordered separately, and both sides of the rear axle are normally done at the same time.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Piston outside diameter: 38 mm (1.496 in)
- Inlet port thread: M10-1.0 x 23.4
- Bleeder screw thread: M10-1.25
Build and materials
- Caliper type: Floating, 1 piston
- Caliper body material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Inlet fitting: Banjo bolt
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured rear left brake caliper with its bracket, caliper slides, dust boots, pad hardware, bleeder screw and crush washers. Pads, anti-squeal shims, wear sensors, a bleeder screw cap and bracket mounting bolts are not included; plan on new mounting bolts, since the old ones may not be reusable.
Frequently Asked Questions
Will this Nugeon brake caliper work on a 2003-2011 Honda Element?
Yes. Nugeon 99-01017B is made for the rear left of the 2003-2011 Honda Element.
Does the Nugeon caliper come with brake pads and a bracket?
It includes the bracket but not pads. Nugeon 99-01017B also has caliper slides, dust boots, pad hardware, a bleeder screw and crush washers; shims, wear sensors and bracket bolts are not included.
What thread does the bleeder screw on this disc brake caliper have?
The included bleeder screw is M10-1.25, and the bleeder screw cap is not included. The banjo bolt inlet port thread is M10-1.0 x 23.4.
Is this rear left brake caliper right for the 1999-2008 Acura TL?
Yes. It goes on the rear left of the 1999-2008 Acura TL, and the rear right side takes a separate caliper.
What can a sticking rear left caliper feel like while driving?
A sticking rear caliper can show up as brake drag, a burning smell after driving or one pad wearing faster than the other. A shop can inspect the brakes and confirm it.
