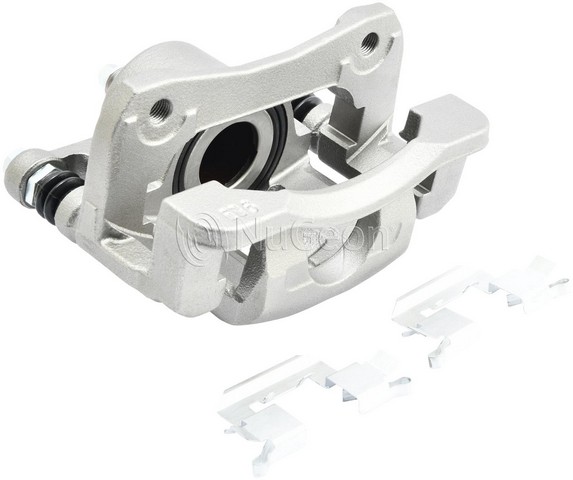

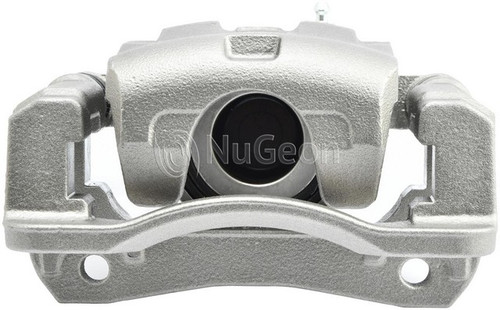

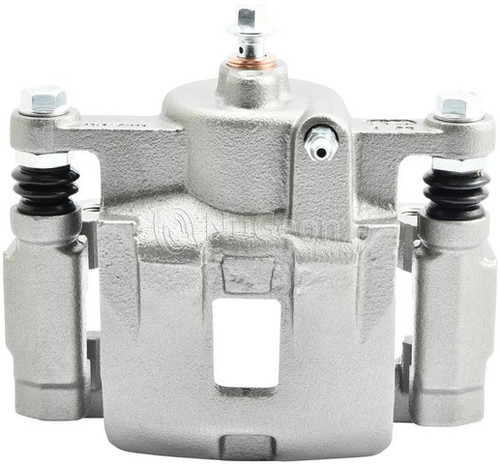

Nugeon 99-01763A front left brake caliper for the 2019-2020 Toyota Yaris and other vehicles clamps the pads against the rotor to slow the wheel. This remanufactured caliper replaces a front left unit that has worn out or started to leak.
- Floating caliper design with a single 54 mm (2.13 in) phenolic piston
- Cast iron housing with a rust preventative finish
- Banjo bolt inlet with an M10-1.0 x 23.4 port thread
- Bleeder screw with cap, M10-1.0 thread
- Mounting bracket and caliper slides included
Quick facts
- Part: Nugeon 99-01763A brake caliper
- Also called: disc brake caliper
- Fits: 2019-2020 Toyota Yaris and other vehicles
- Position: Front left
- Material: Cast iron caliper housing; phenolic piston
- Condition: Remanufactured
A worn caliper can show up as the car pulling to one side under braking, fluid leaking near the wheel or a brake that drags. Before you replace this caliper, rule out worn pads or a damaged brake hose, since those can also pull or drag.
Fits
This Nugeon caliper is a direct-fit replacement for the 2019-2020 Toyota Yaris, the 2017-2018 Toyota Yaris iA and the 2016 Scion iA.
Specifications
Fit and size
- Position: Front left
- Quantity for this position: 1
- Piston: 1, outside diameter 54 mm (2.13 in)
- Inlet: banjo bolt, port thread M10-1.0 x 23.4
- Bleeder screw thread: M10-1.0

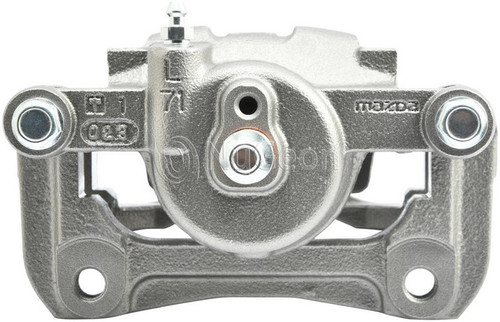

- Cast numbers: housing L 71 LH N61; bracket N61 N62 N66 N67 N612
Build and materials
- Type: Floating
- Housing material: Cast iron
- Piston material: Phenolic
- Finish: Rust preventative
- Condition: Remanufactured
- Country of origin: Mexico
In the box
This listing is one front left caliper, and that side takes one; the front right is a separate part ordered separately, and both sides are normally replaced together. It comes with the dust boots, caliper and pad hardware and crush washers. Brake pads, wear sensors, anti-squeal shims, grease pack and mounting bolts are not included, so plan on new bolts rather than reusing the old ones.
Interchange / FMSI:
FMSI: D1852
Frequently Asked Questions
Is this a front left caliper for the 2019-2020 Toyota Yaris?
Yes. Nugeon 99-01763A is the front left caliper for the 2019-2020 Toyota Yaris, and the front right takes its own caliper.
What hardware comes with the Nugeon brake caliper?
The mounting bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw with cap and crush washers are included. Brake pads and mounting bolts are not.
What size piston does this front left caliper have?
Nugeon 99-01763A has one phenolic piston, 54 mm (2.13 in) in outside diameter, in a floating caliper with a banjo bolt inlet.
How can I tell if a disc brake caliper is going bad?
Signs can include pulling to one side when braking, fluid leaking near the wheel, a brake that drags or uneven pad wear. A shop can inspect the caliper to confirm.
Is this front left caliper remanufactured?
Yes. Nugeon 99-01763A is a remanufactured floating caliper with a cast iron housing and a rust preventative finish.
