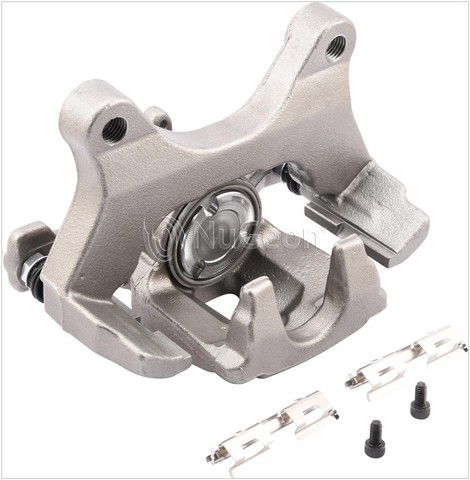

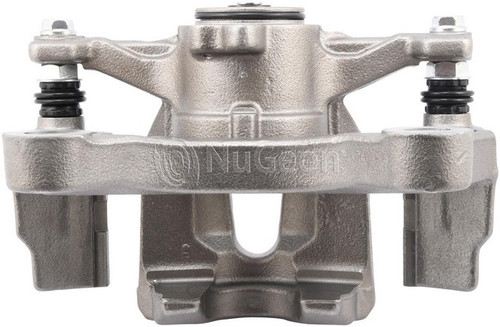

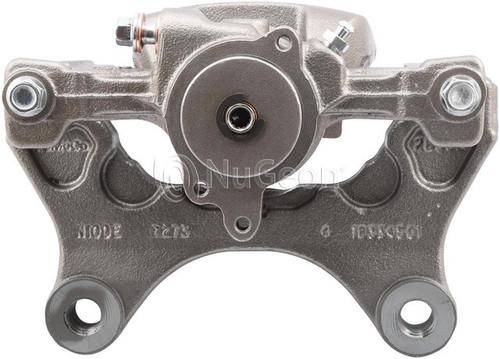

Nugeon 99-18060B rear left brake caliper for the 2019-2020 Ford F-150 squeezes the brake pad against the rotor to slow the vehicle. This remanufactured disc brake caliper uses hydraulic pressure to push its piston against the pad.
- Floating caliper with one steel piston, 54 mm (2.13 in) across
- Cast iron housing with a rust-preventative finish
- Mounting bracket, caliper slides, dust boots and pad hardware included
- Banjo inlet fitting with an M10-1.0 thread and crush washers included
- Bleeder screw included, M10-1.0 thread
Quick facts
- Part: Nugeon 99-18060B brake caliper
- Also called: disc brake caliper
- Fits: 2019-2020 Ford F-150
- Position: Rear left
- Material: Cast iron caliper, steel piston
- Condition: Remanufactured
Pulling to one side, uneven pad wear or fluid around the dust boot can mean a caliper is worn. Slides and hoses can be behind those signs too, so inspect the pads, slides and hose during a brake service, engine off and cool, before ordering. This listing is one caliper for the rear left; the rear right is separate, and both are normally replaced together.
Fits
This caliper fits the rear left position on the 2019-2020 Ford F-150.
Specifications
Fit and size
- Position: Rear left
- Quantity per vehicle: 1
- Piston diameter: 54 mm (2.13 in)
- Piston quantity: 1
- Inlet thread: M10-1.0
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: Floating
- Caliper casting material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Inlet fitting: Banjo
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured caliper with its mounting bracket, caliper slides, dust boots, pad hardware, bleeder screw and crush washers. Brake pads, anti-squeal shims, the bleeder screw cap, wear sensors, a grease pack and the caliper and bracket mounting bolts are not included, so plan on new bolts. This listing holds one caliper, and the rear left takes one.
Interchange / FMSI:
FMSI: D1790
Frequently Asked Questions
Will this Nugeon brake caliper fit the rear left of a 2019-2020 Ford F-150?
Yes. Nugeon 99-18060B fits the rear left position on the 2019-2020 Ford F-150. The rear right side takes a separate caliper.
Are brake pads included with the Nugeon caliper?
No. Nugeon 99-18060B comes with its mounting bracket, slides, dust boots and pad hardware, but the pads and the bracket mounting bolts are not included.
What size is the piston and bleeder thread on this rear left brake caliper?
This caliper has one steel piston that measures 54 mm (2.13 in) across. The banjo inlet and the included bleeder screw are both M10-1.0.
What are the signs of a sticking rear brake caliper?
A brake that drags, a burning smell after driving or brake fluid near the wheel can be signs of a caliper problem. Have the brakes inspected promptly if you notice any of them.
Is this rear left caliper a floating or fixed design?
Floating. This remanufactured caliper has one piston and a cast iron housing with a rust-preventative finish.
