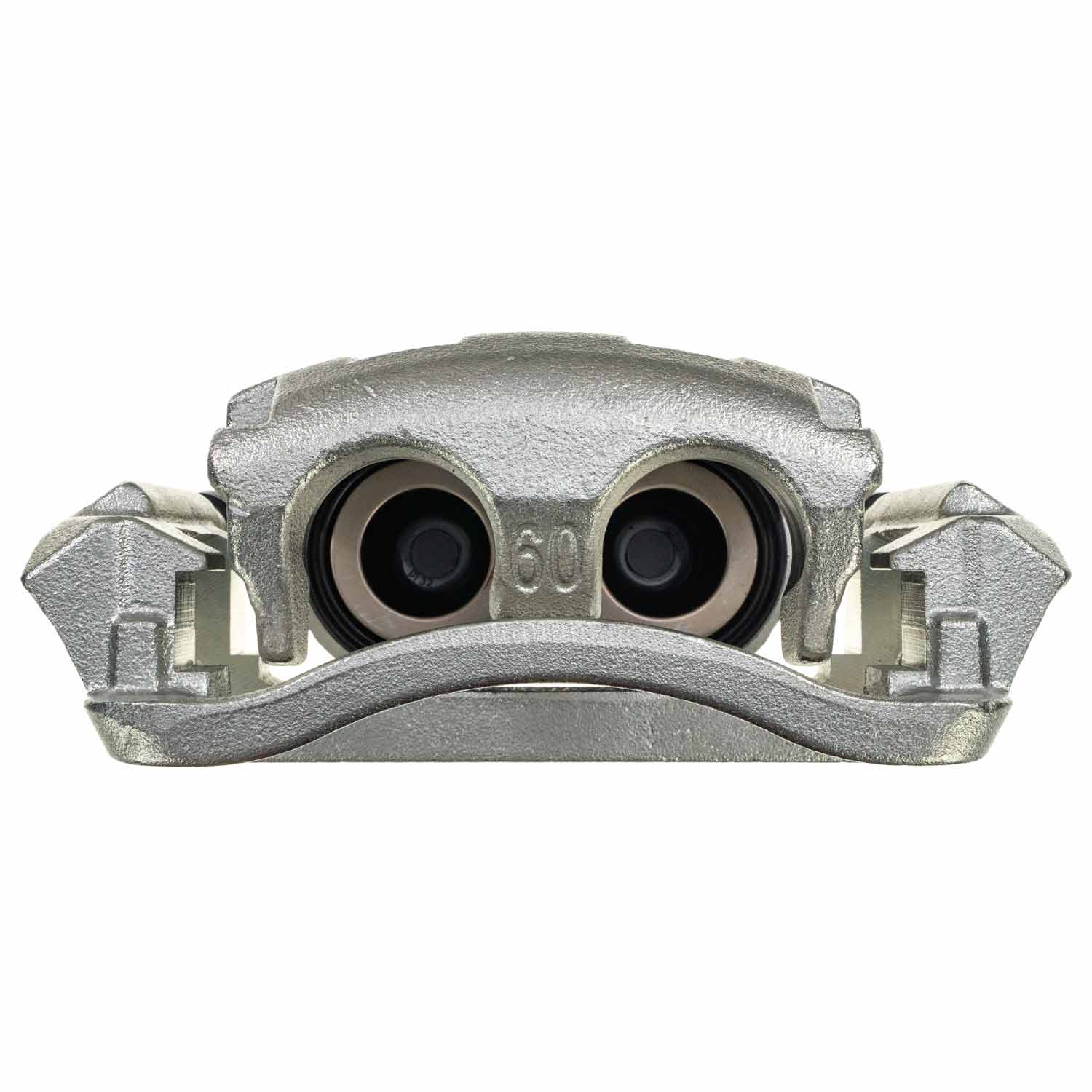

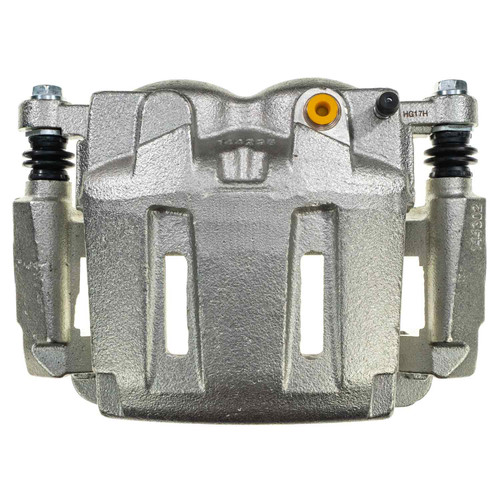

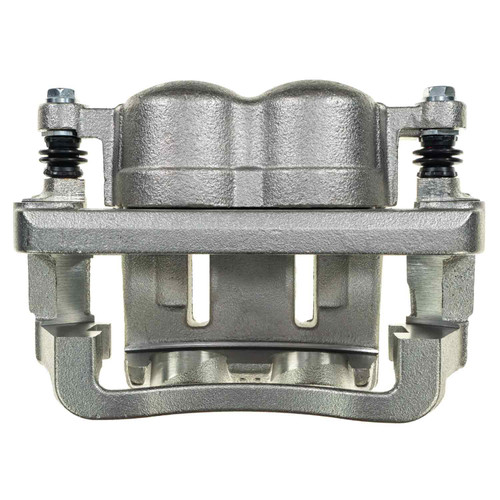

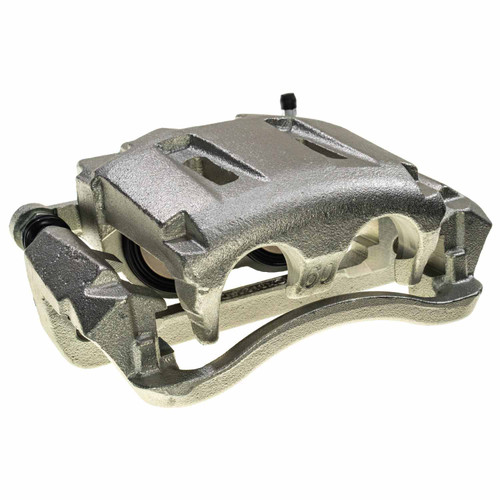

PowerStop L5022 front right brake caliper for the 2005-2013 Ford F-250 Super Duty and other vehicles clamps the brake pads against the rotor to slow the wheel. This floating disc brake caliper has two pistons and a cast iron body.
- Autospecialty by PowerStop replacement brake caliper line
- 100% pressure tested and inspected
- New seals, guide pins, dust boots and bleeder screws
- High temperature EPDM rubber dust boots
- Assembly lubricant for smooth caliper operation and durability in harsh conditions
Quick facts
- Part: PowerStop L5022 brake caliper
- Also called: disc brake caliper
- Fits: 2005-2013 Ford F-250 Super Duty and other vehicles
- Position: Front right
- Material: Cast iron
- Condition: New
Pulling to one side, uneven pad wear or brake fluid around the caliper can mean it is sticking or leaking. Worn pads or a worn rotor can be behind these signs too, so work out which part is at fault before buying.
Fits
It fits the 2005-2013 Ford F-250 Super Duty and the 2005-2012 Ford F-350 Super Duty. This listing is one caliper for the front right; the front left is a separate part ordered on its own, and the two are normally replaced together.
Specifications
Fit and size
- Position: front right
- Quantity per vehicle: 1 (this side)
- Pistons: 2
- Piston diameter: 59.94 mm
- Inlet thread: 3/8-24 (0.375 in)
- Bleeder screw: 1, 3/8-24 thread
Build and materials
- Type: floating caliper
- Casting material: cast iron
- Piston material: phenolic
- Grade: standard replacement
- Condition: new
- Country of origin: China
In the box
One front right brake caliper with new seals, guide pins, dust boots and a bleeder screw. Brake pads, mounting bracket, mounting hardware, mounting bolts and caliper grease are not included; plan on new bolts instead of reusing old ones.
Installation notes
- Bolts on directly in place of the original stock caliper, with no modifications needed.
- Suited to both DIY and professional installers.
Frequently Asked Questions
Is this the right brake caliper for the 2005-2013 Ford F-250 Super Duty?
Yes. PowerStop L5022 is a front right caliper for the 2005-2013 Ford F-250 Super Duty. The front left takes a separate caliper.
Does this PowerStop brake caliper come with brake pads?
No. This PowerStop L5022 listing is one caliper. Brake pads, mounting bracket, mounting hardware and caliper grease are not included.
What piston size and inlet thread does this brake caliper have?
This caliper has two pistons with a 59.94 mm piston diameter, and its inlet thread is 3/8-24.
What are signs a floating brake caliper is sticking?
A sticking caliper can show up as the vehicle pulling to one side, a burning smell after driving or one pad wearing faster than the other. A shop can test it, and brake problems should be looked at promptly.
Are these Autospecialty by PowerStop calipers pressure tested?
Yes. Each caliper is 100% pressure tested and inspected, and its dust boots are high temperature EPDM rubber.
