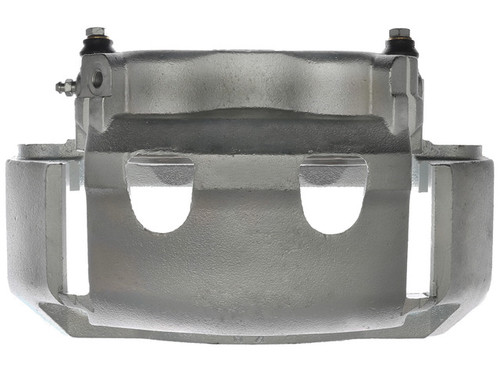

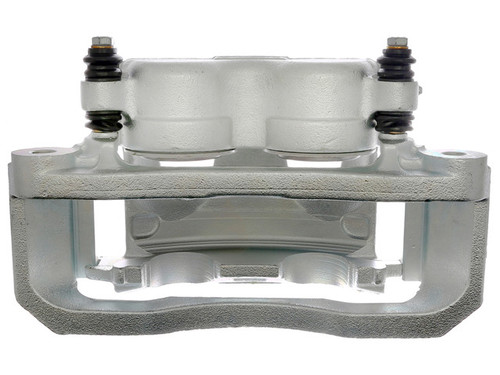

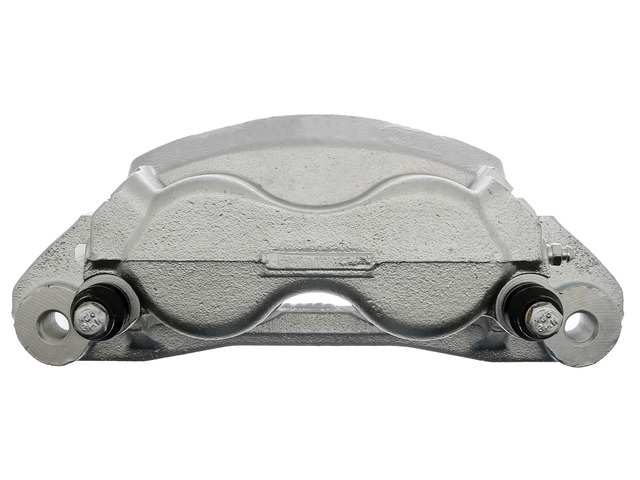

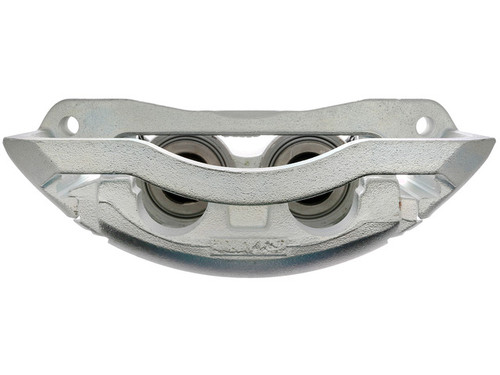

Put a fresh, zinc-plated caliper back on the front left corner with the Raybestos Element3 FRC10522N, a new semi-loaded brake caliper and bracket assembly. When you press the pedal, it clamps the brake pads against the rotor. It is listed for several models from one make, among them the 1995-1997 Ford F-250, the 2003-2007 Ford E-450 Super Duty and the 2000-2002 Ford E-450 Econoline Super Duty. See the "Vehicles it fits" section for the full list.
Raybestos built the Element3 line of new plated calipers for quality-driven customers. It covers many popular applications and applications with high replacement rates.
- OE-engineered design: Precision engineered to meet OE performance and durability.
- Zinc plating: The cast iron housing and bracket are zinc-plated for strong corrosion resistance in harsh conditions.
- Surface finish: Meets the 96-hour ASTM B-117 salt spray corrosion resistance test standard.
- Newly manufactured: Made with 100% new components.
Specifications: This is a floating caliper with a 2.209 in (56.1 mm) piston and a 3/8-24 bleeder screw thread. The caliper casting is cast iron. The bracket mounting holes are 16 mm with a 2.0 mm thread pitch. Quantity per application is one, and the country of origin is China. The caliper is sold individually for the front left position. Replacing both front calipers together is recommended for balanced braking.
Signs a caliper may need replacing: The vehicle pulls to one side when braking, a brake drags or sticks, the pads wear unevenly, or brake fluid leaks at the caliper. If the original caliper is the cause, this assembly replaces it.
Interchange: 18-B4615 · 99-17853B · 18-B4615S · 18-P4615 · 141.65032 · 142.65032 · 99-18039B · 10-3148S · 14-3148
18B4615 · 9917853B · 18B4615S · 18P4615 · 14165032 · 14265032 · 9918039B · 103148S · 143148 · SC3003 · SC3025 · BRC294RM
This part cross-references / interchanges with the following part numbers:
18-B4615, 99-17853B, 18-B4615S, 18-P4615, 141.65032, 142.65032, SC3003, SC3025, BRC294RM, 99-18039B, 10-3148S, 14-3148
Frequently Asked Questions
Is this the right 1995-1997 Ford F-250 brake caliper for my truck?
FRC10522N is listed for the front left position on the 1995-1997 Ford F-250. Check the "Vehicles it fits" section to confirm your exact vehicle.
Does FRC10522N fit the 2003-2007 Ford E-450 Super Duty?
Yes. It is listed for the 2003-2007 Ford E-450 Super Duty and the 2000-2002 Ford E-450 Econoline Super Duty. See the "Vehicles it fits" section for the other listed models.
What does a disc brake caliper do?
When you press the pedal, hydraulic pressure pushes the caliper piston out to clamp the brake pads against the rotor. This floating caliper uses a 2.209 in (56.1 mm) piston.
What comes with the Raybestos FRC10522N?
It is a new semi-loaded caliper and bracket assembly for the front left position, sold as one unit. The cast iron housing and bracket are zinc-plated.
What signs mean a brake caliper may need replacing?
Pulling to one side, a dragging or sticking brake, uneven pad wear, or fluid leaking at the caliper can be signs of a caliper problem. Diagnose the cause before you replace it.
