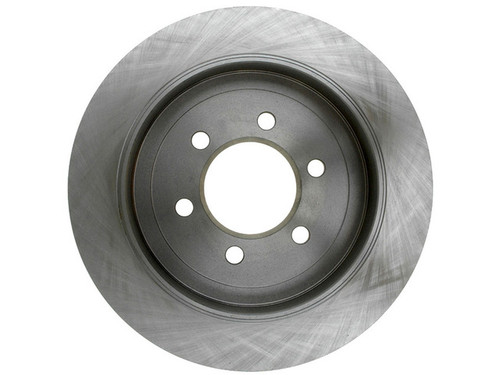

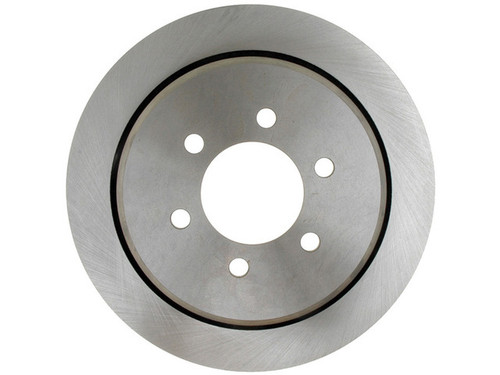

Keep rear braking smooth and quiet with the Raybestos R-Line Disc Brake Rotor 680106R, a direct-fit rear rotor engineered for everyday driving on the 2002-2006 Ford Expedition [All] and 2002-2006 Lincoln Navigator [All]. This is a vented, drum-in-hat cast iron rotor with a non-directional braking surface, so the parking-brake drum is integrated into the hat.
Specs: 13.465 in (342 mm) outside diameter, 0.865 in (21.95 mm) nominal thickness, discard at 0.748 in (19 mm), 6 stud/lug holes and 6 mounting bolt holes, 3.54 in (89.9 mm) center hole. No ABS tone ring is included. Sold individually; the listed applications use two per axle, so replace both rear rotors together as a matched pair for even, balanced braking. Country of origin: China. Manufacturer part number 680106R.
Does this rotor fit my vehicle?
It's a direct-fit rear rotor for the 2002-2006 Ford Expedition [All] and 2002-2006 Lincoln Navigator [All]. Check the Buyer's Guide tab to confirm your exact vehicle.
Is this rotor sold as a pair?
It's sold individually. The listed applications use two per axle, so order two and replace both rear rotors together as a matched set for even, balanced braking.
Is this a vented rotor?
Yes. It's a vented, drum-in-hat cast iron rotor with a non-directional braking surface and an integrated parking-brake drum in the hat.
What are the thickness specs?
Nominal thickness is 0.865 in (21.95 mm) and the discard (minimum) thickness is 0.748 in (19 mm).
Does it include an ABS tone ring?
No, an ABS tone ring is not included with this rotor. Transfer or replace components as directed by the vehicle service procedure.
