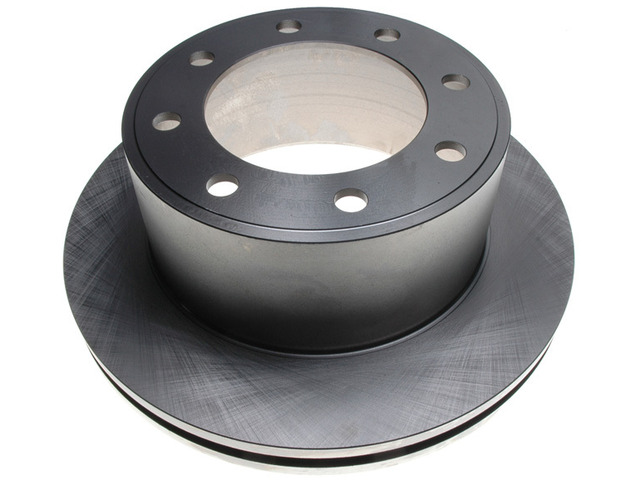

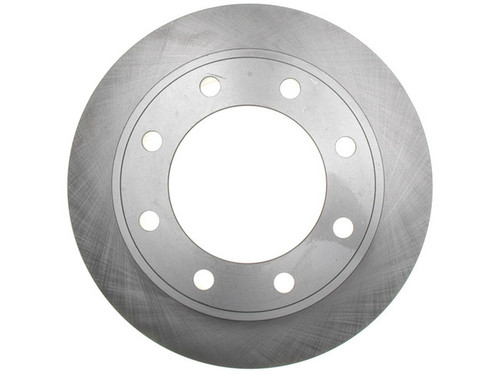

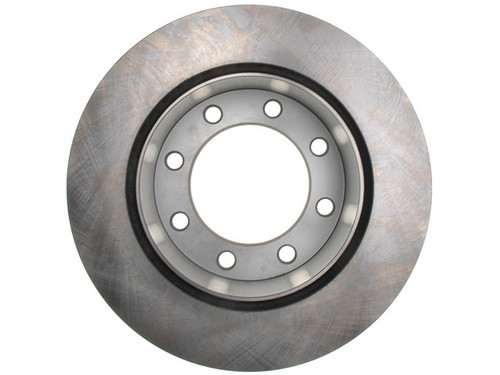

Bring the rear brakes on your Super Duty back to spec with the Raybestos R-Line Disc Brake Rotor 680394R. It drops in as a direct-fit rear replacement for the 2005-2012 Ford F-250 Super Duty and 2005-2012 Ford F-350 Super Duty (All engines), and as a drum-in-hat rotor its hat section doubles as the integral parking-brake drum. Developed from OE samples and made with G3000-qualified cast iron for dependable OE fit, form, and function.
Key features:
Measures 13.386 in (340 mm) outside diameter with an 8 stud/lug-hole pattern, a non-directional brake surface, nominal thickness 1.34 in (34.05 mm), and a discard thickness of 1.28 in (32.5 mm). An ABS tone ring is not included. Sold individually; replacing both rear rotors as a matched pair is recommended for even, balanced braking. Country of origin: China.
Interchange: Manufacturer part number 680394R.
What vehicles does the 680394R fit?
It's a direct-fit rear rotor for the 2005-2012 Ford F-250 Super Duty and 2005-2012 Ford F-350 Super Duty (All engines); two rotors are used per axle.
Is this a front or rear rotor?
It is a rear disc brake rotor.
What is a drum-in-hat rotor?
Its hat section forms an integral drum that the parking-brake shoes act on, combining the disc brake rotor and the parking-brake drum in a single piece.
Does this rotor include an ABS tone ring?
No, an ABS tone ring is not included with this rotor.
Should I replace both rear rotors at the same time?
Replacing both rear rotors as a matched pair is recommended for even, balanced braking. Each rotor is sold individually, so order two for a complete rear-axle job.
