Front Brake Rotor for 2021-2023 Dodge Charger & More - Raybestos 780389R

Be the first to review this product
$109.99
MPN: 780389R
UPC: 887213202274
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Raybestos Brakes Disc Brake Rotor P/N:780389R
Raybestos Brakes Disc Brake Rotor P/N:780389R
$109.99

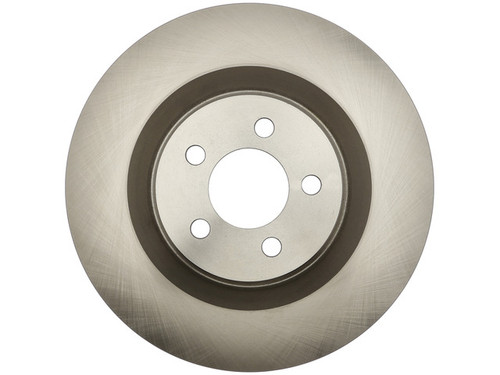

The Raybestos Brakes 780389R front brake rotor for the 2021-2023 Dodge Charger and other vehicles gives the front pads a vented surface to clamp as they slow the car.

  • R-Line disc brake rotor engineered for everyday driving conditions.
  • Developed from OE samples and made with G3000-qualified material for OE fit, form and function.
  • Meets the SAE standard for tensile strength, for structural integrity and a maximum service life.
  • Low initial lateral runout and thickness variation, for less pedal pulsation, less brake noise and longer pad life.
  • Mill balanced and 100 percent validated to help minimize thickness variation, for less vibration and smoother stopping.

A pulsing brake pedal, a shaking steering wheel when you brake or deep grooves on the rotor face can mean the front brake rotor is worn, though worn pads or a sticking caliper can do the same. Pin down the cause before you buy parts. Front rotors are normally replaced as a pair so both sides brake alike, and each listing covers a single rotor.

The 2021-2023 Chrysler 300 and the 2021-2023 Dodge Challenger get a direct fit from this brake rotor as well, and it fits more Chrysler and Dodge vehicles beyond them. If your car is not named here, open the Buyer's Guide tab and find your exact model and engine there.

Specifications

Fit and size

  • Position: front, left or right
  • Outside diameter: 360 mm (14.173 in)
  • Center hole diameter: 72.6 mm (2.858 in)
  • Bolt circle: 115 mm (4.528 in), 5 lug holes
  • Mounting bolt hole diameter: 16.6 mm (0.654 in)
  • Nominal thickness: 32 mm (1.26 in)
  • Discard thickness: 30 mm (1.181 in)
  • Overall height: 58 mm (2.283 in)

Build and materials

  • Type: vented, conventional (not drum-in-hat)
  • Material: G3000-qualified
  • ABS tone ring: not included
  • Country of origin: China

In the box: one front brake rotor. The front axle takes two.

Frequently Asked Questions

Do these 2021-2023 Dodge Charger rotors fit both the left and right front?

Yes. The Raybestos Brakes 780389R front brake rotor fits the left or right front of the 2021-2023 Dodge Charger, so the same part goes on either side.

What size is the 780389R rotor, and is it vented?

This front brake rotor is a vented, conventional design 360 mm (14.173 in) across, with a 32 mm (1.26 in) nominal thickness and a 115 mm bolt circle with 5 lug holes.

When is this Raybestos R-Line rotor too thin to keep using?

Replace this front brake rotor once it wears to its 30 mm (1.181 in) discard thickness, which can be measured during a brake service.

Does the 780389R come with an ABS tone ring?

No. The Raybestos Brakes 780389R front brake rotor does not include an ABS tone ring.

Why are R-Line front rotors mill balanced?

Mill balancing with 100 percent validation helps minimize thickness variation on this front rotor, which leads to less vibration and smoother stopping.
