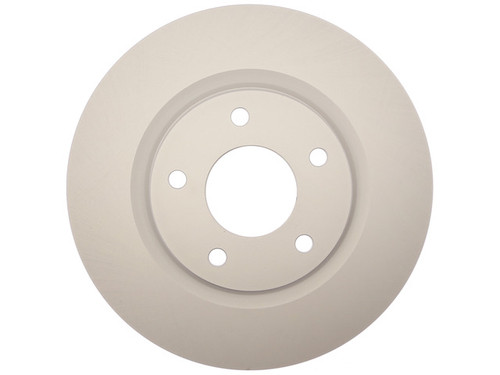

Slow your vehicle with steady, controlled braking using the Raybestos Element3 Coated Disc Brake Rotor 780459FZN — a front, vented cast-iron rotor with a full Grey Fusion 4.0® coating. It's a direct-fit front replacement for the listed applications, including the 2011-2014 Chrysler 200 (All), 2009-2010 Chrysler Cirrus (All), 2007-2010 Chrysler Sebring (All), 2008-2014 Dodge Avenger (All), 2007-2012 Dodge Caliber (All), 2007-2017 Jeep Compass and 2007-2017 Jeep Patriot (All), plus many Mitsubishi models — 2013-2015 ASX, 2018-2020 & 2022-2023 Eclipse Cross, 2008-2016 Lancer, 2007-2020 Outlander, 2011-2023 Outlander Sport and 2011-2018 RVR (All). See the Buyer's Guide tab for the full list.
- Grey Fusion 4.0® coating: a proprietary finish coats the rotor's entire surface, including the cooling vanes, to help resist corrosion and delay rust-induced performance issues.
- RPT® Rust Prevention Technology: helps keep the rotor and its cooling vanes clear of rust and corrosion for airflow and cooling.
- Non-directional finish: a non-directional ground surface arrives ready to install right out of the box.
- OE Matched: built to OE-matched precision and performance.
Specs: 294 mm (11.575 in) outside diameter, 26.1 mm nominal thickness, 24.4 mm discard thickness, 5 lug holes on a 114.3 mm bolt circle, 69 mm center hole. ABS tone ring is not included. Sold individually; replacing both sides together as a matched pair is recommended for even, balanced braking. Country of origin: China. Manufacturer part number 780459FZN.
Frequently Asked Questions
Is this a front or rear rotor?
The catalog lists it as a front disc brake rotor. Confirm the application for your vehicle using the Buyer's Guide tab before ordering.
Does one listing cover both sides?
No. This rotor is sold individually. The listed applications use two per axle, so order 2 and replace both sides together for even, balanced braking.
What is the Grey Fusion 4.0 coating?
It's a proprietary finish that coats the rotor's entire surface, including the cooling vanes, to help resist corrosion and delay rust-induced performance issues.
Does it include an ABS tone ring?
No. The catalog lists ABS Tone Ring Included: No. If your vehicle's original rotor carried a tone ring, plan to transfer or source it as directed by the service procedure.
What are the key dimensions?
Outside diameter is 294 mm (11.575 in), nominal thickness 26.1 mm, discard thickness 24.4 mm, with 5 lug holes on a 114.3 mm bolt circle and a 69 mm center hole.
