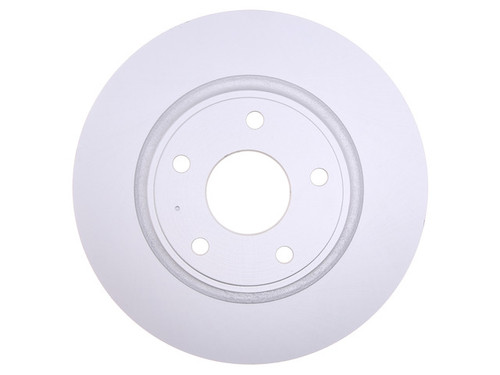

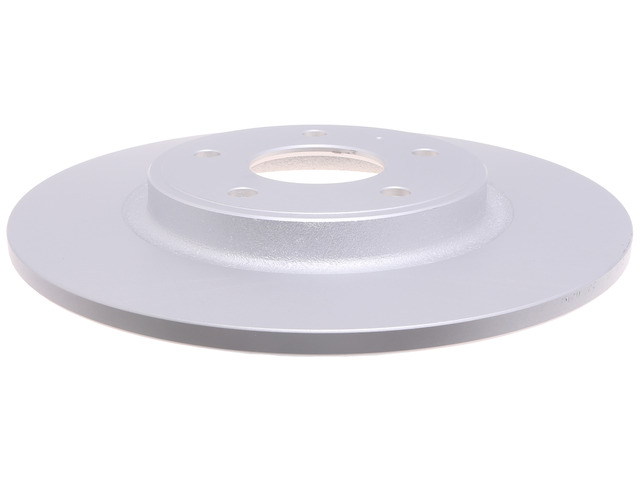

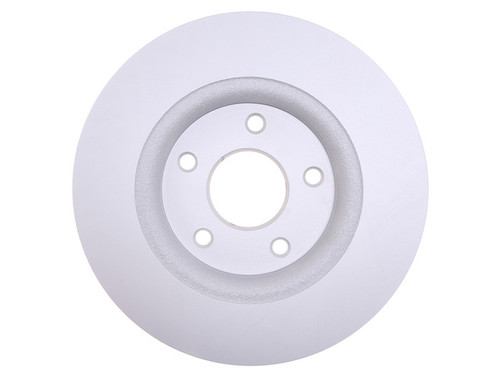

Give your rear brakes a fresh, true braking surface with the Raybestos Specialty brake rotor, part number 780965, a solid cast-iron rear rotor designed to match OE fit, form and function. It fits many vehicles, among them the 2012-2020 Dodge Grand Caravan, 2012-2020 Dodge Journey and 2012-2015 Ram C/V. See the Buyer's Guide tab for the full list.
- OE fit, form and function: a vehicle-specific design matched to the original rotor for the listed applications.
- Rust protection: Specialty rotors come either fully coated with Grey Fusion 4.0, rated at 300 hours of salt spray, or with a Black Fusion painted hat and edge.
- SAE-standard iron: built to SAE standards for tensile strength, hardness and iron grade.
- Turned finish: gives the pads a smooth surface to engage, intended for effective stops right out of the box.
Specifications: conventional solid rotor in cast iron with a smooth, non-directional braking surface. Outside diameter is 12.913 in (328 mm), nominal thickness is 0.472 in (12 mm) and discard thickness is 0.409 in (10.4 mm). It has 5 lug holes on a 5 in (127 mm) bolt circle, a 2.85 in (72.4 mm) center hole, an 8.209 in (208.5 mm) inside diameter and an overall height of 1.307 in (33.2 mm). No ABS tone ring is included. Country of origin: China.
Sold individually, and this listing is for one rotor. The listed applications use two, so replacing both rear rotors together as a matched pair is recommended for even, balanced braking. Signs a rotor may need replacing include a pulsing brake pedal, grinding noises, deep scoring, or wear down to the discard thickness.
