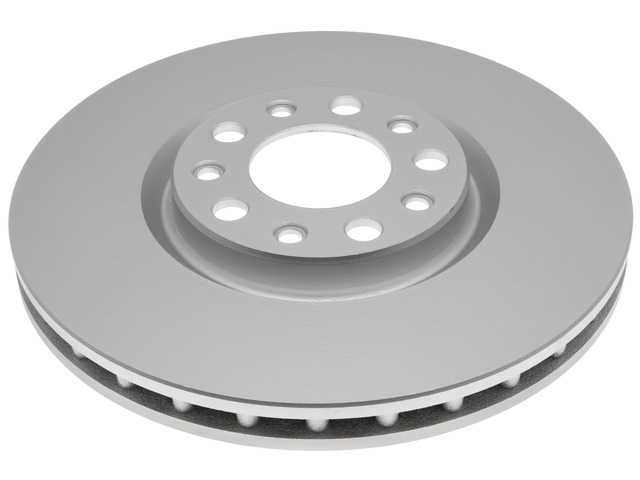

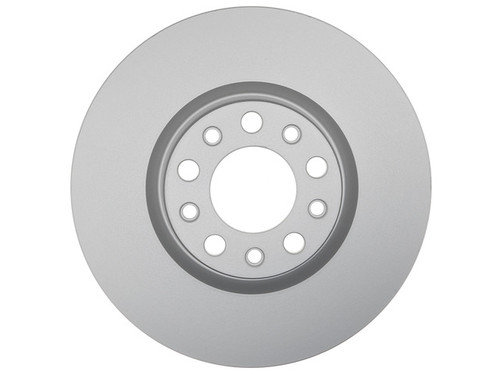

Raybestos Brakes Disc Brake Rotor P/N:780995

Help keep heat and brake fade in check with the Raybestos Specialty Street Performance Brake Rotor 780995, a vented front rotor that serves as a direct-fit replacement for the 2013-2016 Dodge Dart and 2015-2017 Chrysler 200. This Raybestos disc brake rotor is cast iron and has a turned, non-directional braking surface. It is part of the Raybestos Performance line, which the manufacturer designs with rust prevention in mind.

• Cooling vanes: The vented design uses cooling vanes that match OE configurations. They are designed to provide cooling and help reduce fade.
• Application-specific coating: The finish depends on the application. It is one of three options: a black fusion coating on the rotor hat; Grey Fusion 4.0 coating on the entire rotor; or black fusion on the hat with Grey Fusion 4.0 on the inboard surface and cooling vanes.
• Turned finish: The turned surface helps minimize noise and improve responsiveness for smoother stops.
• Conventional design: This is a conventional rotor with a smooth, non-directional braking surface. It is not a drum-in-hat unit.

Specifications:

• Outside diameter: 12.008 in (305 mm)
• Nominal thickness: 1.102 in (28 mm)
• Discard thickness: 1.024 in (26 mm)
• Overall height: 1.56 in (39.6 mm)
• Lug holes: five, on a 4.331 in (110 mm) bolt circle
• Center hole: 2.76 in (70.1 mm)
• ABS tone ring: not included

The rotor is sold individually. The listed applications use two, one on each side of the front axle, so replacing both sides together as a matched pair is recommended for even, balanced braking. Country of origin: China.
