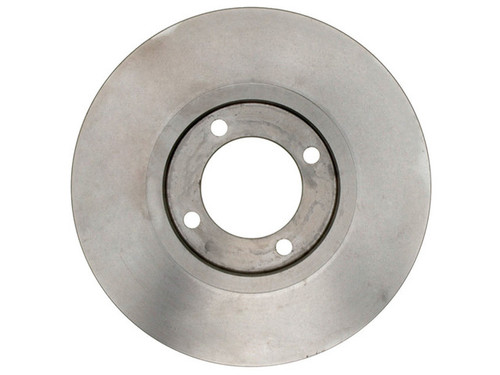

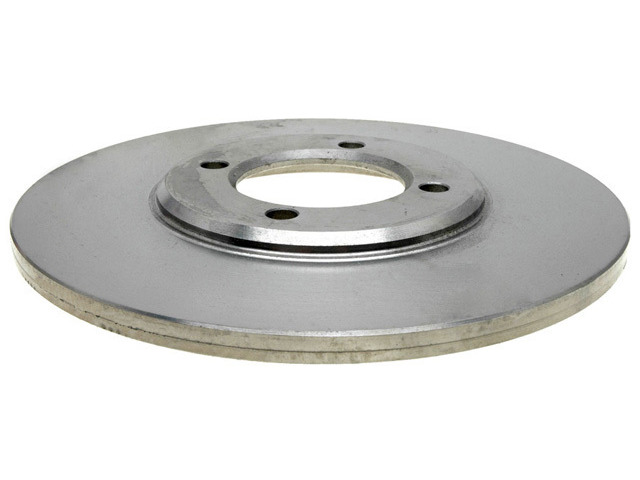

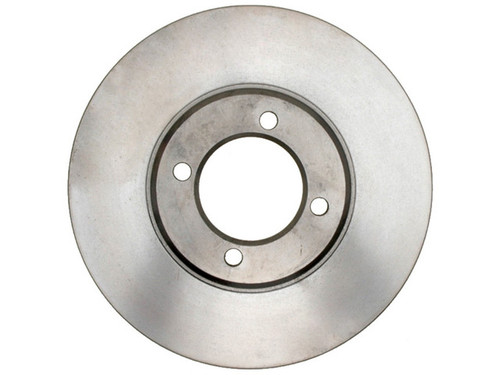

Help keep everyday stops smooth with the Raybestos R-Line Brake Rotor 9010R, a solid, conventional front brake rotor developed from OE samples for OE fit, form and function. It fits many vehicles, among them the 1970-1979 Toyota Corolla, 1971-1975 Toyota Celica and 1971-1973 Toyota Carina. See the Buyer's Guide tab for the full list.
Raybestos engineers its R-Line rotors and drums for everyday driving conditions, with dependable braking as the goal.
- OE fit, form and function: Developed from OE samples and made with G3000-qualified material.
- SAE standard: R-Line rotors meet the SAE standard for tensile strength, supporting structural integrity.
- Low initial lateral runout and thickness variation: Held to small runout and thickness-variation limits, designed to help reduce pedal pulsation and brake noise and support longer pad life.
- Mill balanced edges: Mill balanced and 100 percent validated, which helps minimize thickness variation for reduced vibration and smoother stopping.
Specifications: 9.03 in (229.35 mm) outside diameter; 0.394 in (10 mm) nominal thickness with a 0.354 in (9 mm) discard thickness; 0.694 in (17.65 mm) overall height; 2.521 in (64.05 mm) center hole; 4 mounting bolt holes of 0.416 in (10.55 mm) on a 3.425 in (87 mm) bolt circle. Country of origin: China.
Signs a rotor may need replacing include pulsation in the brake pedal, grinding or scraping noises, visible scoring or grooves, or thickness at or below the 0.354 in discard spec. The listed applications use two rotors. This rotor is sold individually, and replacing both sides together is recommended for even, balanced braking.
