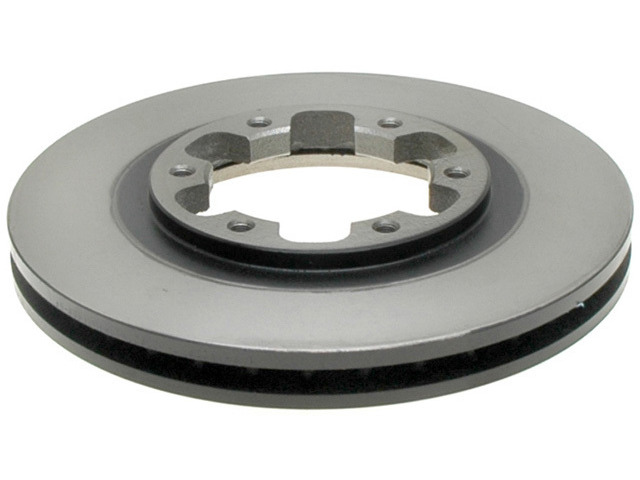

Built for everyday driving, the Raybestos R-Line front brake rotor, part number 96615R, gives your pads a fresh, true surface to clamp against at each stop. It fits many vehicles, among them the 2003-2004 Nissan Frontier, 1996-1998 Nissan Pathfinder and 2000-2004 Nissan Xterra. See the Buyer's Guide tab for the full list.
This Raybestos R-Line disc brake rotor is part of a line engineered for daily driving conditions:
Specifications: vented, conventional (not drum-in-hat) cast-iron rotor with a non-directional braking surface. Outside diameter 11.13 in (282.7 mm), nominal thickness 1.1 in (27.95 mm), discard thickness 1.024 in (26 mm), overall height 1.5 in (38.1 mm). Six lug holes on a 4.882 in (124 mm) bolt circle, with a 3.94 in (100.1 mm) center hole. ABS tone ring not included.
Sold individually. The listed applications use two, so replacing both front rotors together as a matched pair is recommended for even, balanced braking. Country of origin: China.
Is this the right Nissan Frontier brake rotor for my truck?
The 96615R is listed as a front rotor for the 2003-2004 Nissan Frontier with all engines. Check the Buyer's Guide tab to confirm your exact vehicle.
What are the rotor's main dimensions?
It measures 11.13 in (282.7 mm) across, with a 1.1 in (27.95 mm) nominal thickness and 1.5 in overall height. It has six lug holes on a 124 mm bolt circle and a 3.94 in center hole.
When should a brake rotor be replaced?
Replace it once it wears to its 26 mm (1.024 in) discard thickness. Pedal pulsation, vibration when braking, deep grooves or noise are signs it may need replacing, though other brake parts can cause these too.
Is an ABS tone ring included, and how many rotors do I need?
No ABS tone ring is included. The rotor is sold individually. The listed applications use two, and replacing both front rotors together is recommended for even braking.
Is this a vented or solid rotor?
It is a vented, conventional cast-iron rotor, not a drum-in-hat design, and it has a non-directional braking surface.
