Smooth, quiet everyday stops start with the Raybestos Brakes R-Line Disc Brake Rotor 96819R, a rear disc brake rotor that drops in for the 1999-2003 Lexus RX300 [All] and 2001-2003 Toyota Highlander [All]. Developed from OE samples and cast from G3000-qualified material, it's built for dependable braking during normal daily driving.
- OE fit, form, and function: developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE standard: meets the SAE standard for tensile strength for structural integrity and a maximum service life.
- Low initial lateral runout and thickness variation: tight runout and thickness variation help reduce pedal pulsation and brake noise and support extended pad life.
- Mill balanced edges: mill balanced and 100 percent validated to help minimize thickness variation, reduce vibration, and deliver smoother stopping.

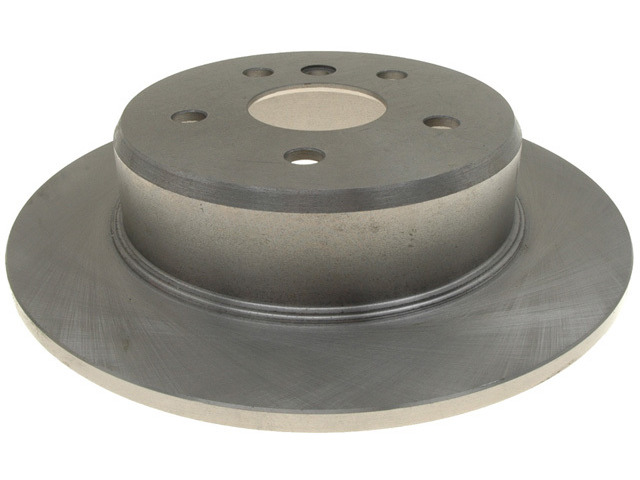

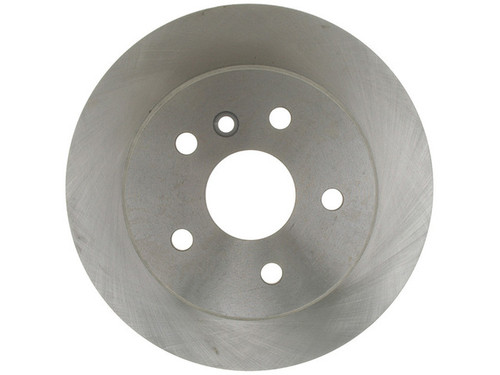

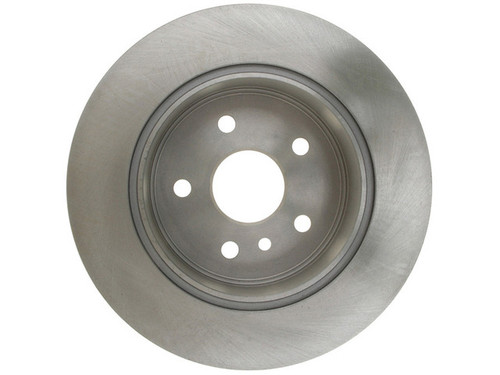

This is a vented, drum-in-hat rear rotor with a non-directional cast iron braking surface, an 11.34 in (288.05 mm) outside diameter, a 62 mm (2.44 in) center hole, and 5 lug holes on a 4.5 in (114.3 mm) bolt circle. Discard thickness is 0.354 in (9 mm). An ABS tone ring is not included. Sold individually; for even, balanced braking, replace both rear rotors as a matched pair (order 2). Country of origin: China.
Manufacturer part number 96819R.
Frequently Asked Questions
Is this a front or rear rotor?
The catalog lists it as a rear disc brake rotor for the covered applications.
What vehicles does the 96819R fit?
It's cataloged for the 1999-2003 Lexus RX300 [All] and 2001-2003 Toyota Highlander [All]. Check the Buyer's Guide tab to confirm fitment for your vehicle.
How many rotors should I order?
It's sold individually. The listed applications use two per vehicle, so order 2 and replace both rear rotors together as a matched pair for even, balanced braking.
Is this rotor vented or solid?
It's a vented, drum-in-hat type rotor with a non-directional braking surface, so it can be installed on either side.
Does it include an ABS tone ring?
No. Per the catalog, an ABS tone ring is not included with this rotor.
