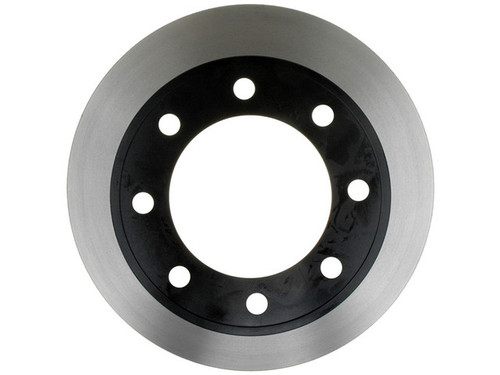

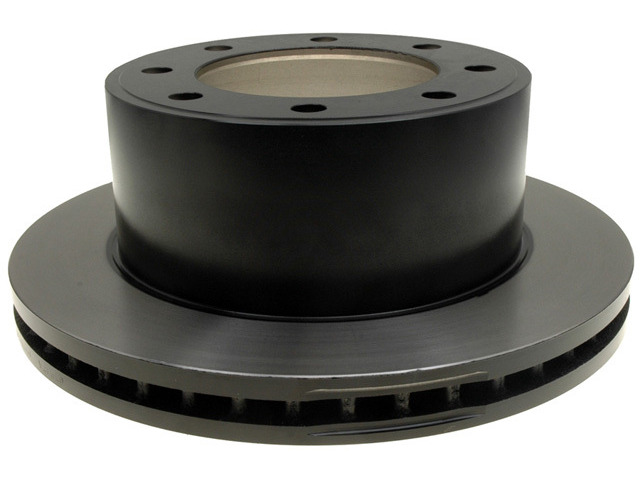

Quiet down noise-prone rear braking on your work truck with the Raybestos Specialty Truck Disc Brake Rotor (680394), a direct-fit rear replacement for the 2005-2012 Ford F-250 Super Duty and 2005-2012 Ford F-350 Super Duty [All]. Built for truck, medium-duty and air-disc use, this cast iron rotor pairs vehicle-specific cooling vane configurations with application-specific iron to help damp noise, improve service life and speed up brake jobs.
It measures 13.386 in (340 mm) in outside diameter, has eight stud/lug holes, a drum-in-hat design and a non-directional braking surface, with a discard thickness of 1.28 in (32.5 mm). The rotor follows SAE standards for tensile strength, hardness and iron grade. The ABS tone ring is not included. Country of origin: China. Sold individually; the listed applications use two rear rotors (one per side), so replace both sides as a matched pair for even, balanced braking.
Will this rotor fit my truck?
It's a direct-fit rear rotor for the 2005-2012 Ford F-250 Super Duty and 2005-2012 Ford F-350 Super Duty. Check the Buyer's Guide tab to confirm your exact vehicle.
Is this a front or rear rotor?
This is a rear disc brake rotor for the listed Ford Super Duty applications.
What are this rotor's dimensions?
It has an outside diameter of 13.386 in (340 mm), eight stud/lug holes and a drum-in-hat design. The discard thickness is 1.28 in (32.5 mm).
Is the ABS tone ring included?
No, this rotor does not include an ABS tone ring.
Should I replace both rotors at the same time?
The listed applications use two rear rotors, one per side. It's sold individually, so order two and replace both sides together as a matched pair for even, balanced braking.
