Engine Piston for 2004-2007 Dodge Ram 2500 & More - Sealed Power 2777PNA

$193.99

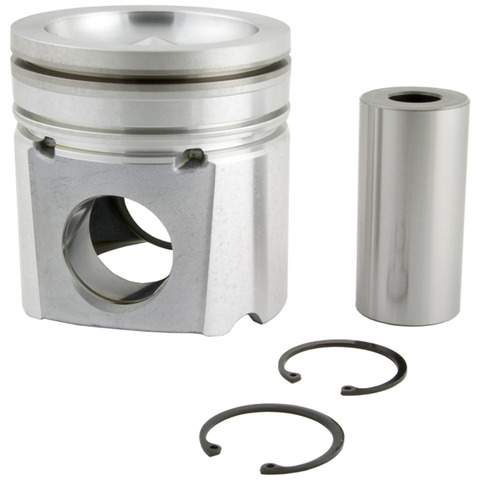

Sealed Power Engine Piston 2777PNA - view 2

Part number: 2777PNA

UPC: 614046954212

Condition: New

Weight: 4.40 LBS

Item Package Quantity: 1

$193.99

Current Stock: 18

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Sealed Power Engine Piston P/N:2777PNA

$193.99

Description

Sealed Power 2777PNA engine piston for the 2004-2007 Dodge Ram 2500 6-cylinder 5.9L and other vehicles carries combustion force down to the connecting rod. Like other Sealed Power pistons, it is an application-specific part built for the demands of today's engines.

Cast aluminum piston
Bowl piston head

Quick facts

Part: Sealed Power 2777PNA engine piston
Fits: 2004-2007 Dodge Ram 2500 6-cylinder 5.9L and other vehicles
Material: Cast aluminum
Condition: New

A worn piston can show up as blue exhaust smoke, lost compression or a knock from the cylinder. Worn piston rings, a worn cylinder bore or tired valve seals can be behind those signs too, so find the cause before you buy a piston. This listing is one piston.

Fits

It fits the 2004-2007 Dodge Ram 2500 6-cylinder 5.9L, which takes six pistons, and the 2004-2007 Dodge Ram 3500 6-cylinder 5.9L. It is made with the performance and dependability of original equipment pistons.

Specifications

Fit and size

Quantity per vehicle: 6
Cylinder bore diameter: 102.0 mm (4.0157 in)
Piston pin outside diameter: 40.00 mm
Compression height: 71.60 mm
Top compression ring thickness: 3.00 mm
Second compression ring thickness: 2.40 mm
Oil ring thickness: 4.00 mm
Oversized: No

Build and materials

Piston material: cast aluminum
Piston head type: bowl
Grade type: Premium
Use with: E-984KC ring set
Condition: New
Country of origin: United States

In the box

One engine piston. Assembly lubricant is not included.

Interchange: P5058(1)STD

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

P5058(1)STD

Buyer's Q&A

Frequently Asked Questions

Does this Sealed Power engine piston fit the 2004-2007 Dodge Ram 3500 6-cylinder 5.9L?

Yes. Sealed Power 2777PNA fits the 2004-2007 Dodge Ram 3500 6-cylinder 5.9L, and the 2004-2007 Dodge Ram 2500 6-cylinder 5.9L as well.

Are these Sealed Power cast pistons meant for the E-984KC ring set?

Yes. The Sealed Power 2777PNA is a cast piston made for use with the E-984KC ring set.

What bore size is this cast aluminum piston made for?

The cylinder bore diameter is 102.0 mm (4.0157 in). The piston pin outside diameter is 40.00 mm, the compression height is 71.60 mm, and the piston is not oversized.

Does this piston come with assembly lubricant?

No. Assembly lubricant is not included; the listing is one cast aluminum piston.

Does the Sealed Power 2777PNA piston replace number P5058(1)STD?

Yes. P5058(1)STD is another number that this Sealed Power 2777PNA cast aluminum piston replaces.
