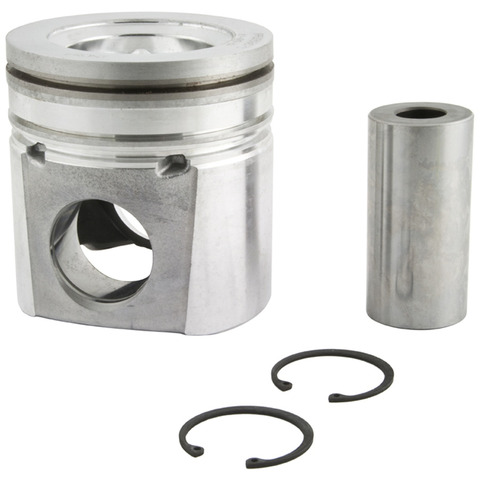

Engine Piston for 2003-2004 Dodge Ram 2500 & More - Sealed Power 2775PNA

$175.99

Sealed Power Engine Piston 2775PNA - view 2

Part number: 2775PNA

UPC: 614046954199

Condition: New

Weight: 5.00 LBS

Item Package Quantity: 1

$175.99

Current Stock: 19

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Sealed Power Engine Piston P/N:2775PNA

$175.99

Description

Sealed Power 2775PNA engine piston for the 2003-2004 Dodge Ram 2500 6-cylinder 5.9L and other vehicles carries combustion force from the cylinder down to the connecting rod. It is built for the performance and dependability of original equipment pistons.

Cast aluminum construction with a bowl-type piston head
Compression height of 71.60 mm and a piston pin outside diameter of 40.00 mm
Standard size for a cylinder bore of 102.0 mm (4.0157 in)
Ring thicknesses of 3.00 mm top compression, 2.40 mm second compression and 4.00 mm oil

Quick facts

Part: Sealed Power 2775PNA engine piston
Fits: 2003-2004 Dodge Ram 2500 6-cylinder 5.9L and other vehicles
Material: Cast aluminum
Condition: New

A worn piston can show up as blue exhaust smoke, oil consumption or a knocking noise from the engine. Worn rings, tired valve seals or a scored cylinder bore can be behind those signs too, so find the cause before you buy pistons.

Fits

This piston is a direct-fit replacement for the 2003-2004 Dodge Ram 2500 6-cylinder 5.9L and the 2003-2004 Dodge Ram 3500 6-cylinder 5.9L.

Specifications

Fit and size

Quantity per vehicle: 6
Cylinder bore diameter: 102.0 mm (4.0157 in)
Size: standard, not oversized
Compression height: 71.60 mm
Piston pin outside diameter: 40.00 mm
Top compression ring thickness: 3.00 mm
Second compression ring thickness: 2.40 mm
Oil ring thickness: 4.00 mm

Build and materials

Piston material: cast aluminum
Piston head type: bowl
Ring set: use with E-984KC
Condition: new
Country of origin: United States

In the box

One piston. The 2003-2004 Dodge Ram 2500 6-cylinder 5.9L takes six. Assembly lubricant is not included.

Interchange: P3059(1)STD

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

P3059(1)STD

Buyer's Q&A

Frequently Asked Questions

Is the Sealed Power 2775PNA right for a 2003-2004 Dodge Ram 3500 6-cylinder 5.9L?

Yes. Sealed Power 2775PNA fits the 2003-2004 Dodge Ram 3500 6-cylinder 5.9L, and it also fits the 2003-2004 Dodge Ram 2500 6-cylinder 5.9L.

What cylinder bore do Sealed Power pistons like the 2775PNA suit?

The Sealed Power 2775PNA is a standard-size piston, not oversized, for a 102.0 mm (4.0157 in) cylinder bore. Its compression height is 71.60 mm.

Does this Sealed Power engine piston come with rings?

No. This listing is one piston, not a ring set. It is made for use with the E-984KC ring set, and assembly lubricant is not included.

Are these Sealed Power cast pistons made of aluminum?

Yes. This piston is cast aluminum with a bowl-type head, and it is made in the United States.

What ring thicknesses go with the Sealed Power 2775PNA piston?

The top compression ring is 3.00 mm, the second compression ring is 2.40 mm and the oil ring is 4.00 mm. The piston pin outside diameter is 40.00 mm.
